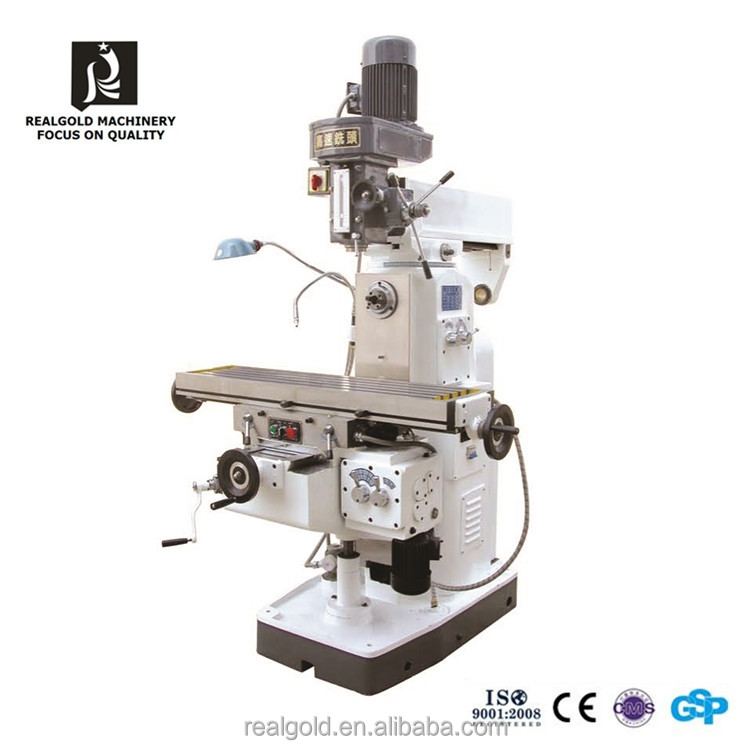

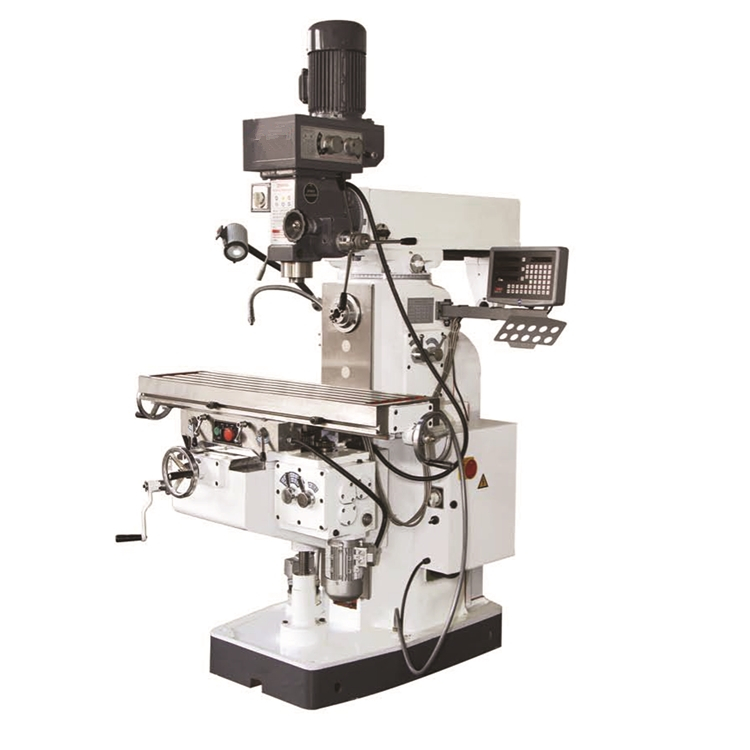

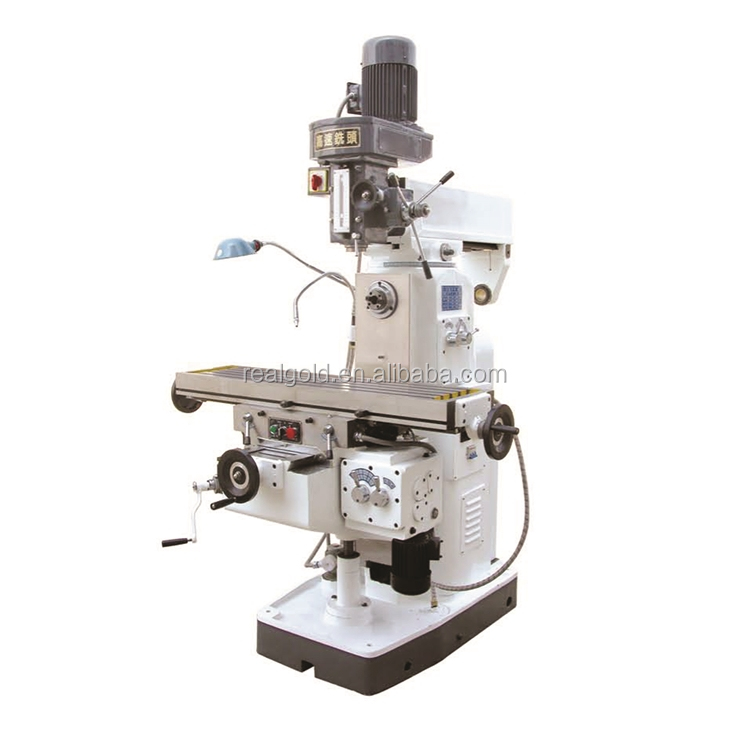

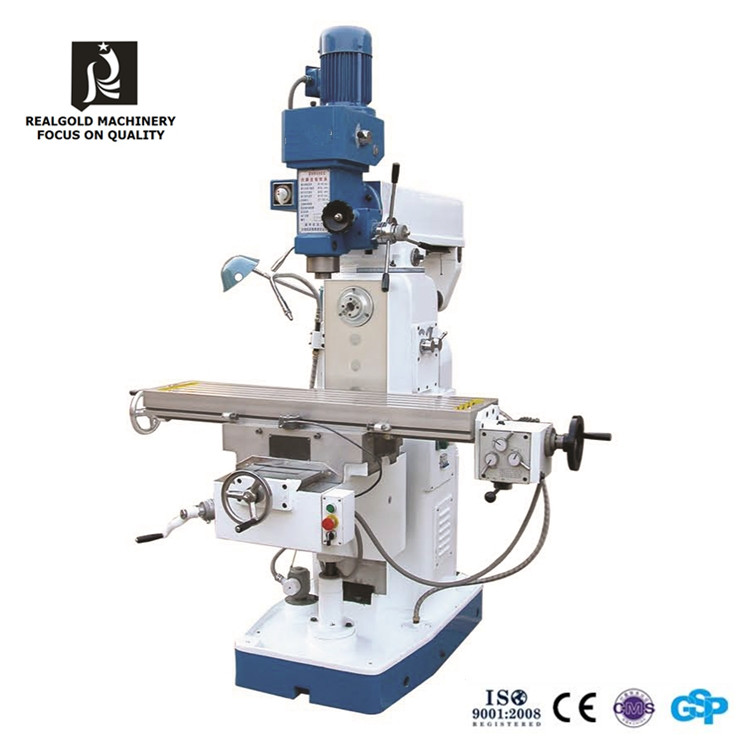

These series machines can process various complex geometry parts, and especially suitable for the manufacturing of tool, clamps, moulds and textile industry. The milling head of machine is installed in the front-end of the rocker can do the rotation of F-B ±45º and L-R ±90º and the rocker can move front and back on the upper bed and can swing 360º. The three directions guide rail pairs of the machine all have wear-resisting measures with high accuracy stability and long service life.
| Specifications | ZX6350 |
|---|---|
| Table size | 1120×280mm |
| Longitudinal travel | 650mm |
| Cross travel | 280mm |
| Vertical travel | 430mm |
| Vertical milling capacity | 30mm |
| Face milling capacity | 120mm |
| Drilling capacity | 50mm |
| Longitudinal feeds range | 24-720mm/min |
| Cross feeds range | 24-720mm/min |
| Vertical milling spindle travel | 150mm |
| Spindle nose to table face | 100-530mm |
| Travel of movable arm | 360mm |
| Vertical milling spindle taper | MT4 |
| Horizontal milling spindle taper | MT4 |
| Vertical milling spindle speed | 115-1750r/min 8 steps |
| Horizontal milling spindle speed | 32-1320r/min |
| Vertical milling motor | 1.5/0.85kw |
| Main motor | 2.0/2.4kw |
Our quality confidence and customers’ peace of mind. We will supply parts or service for repairs at no cost for a period of 18 months after the bill of lading date. Extended warranty is available at the time of purchase.
