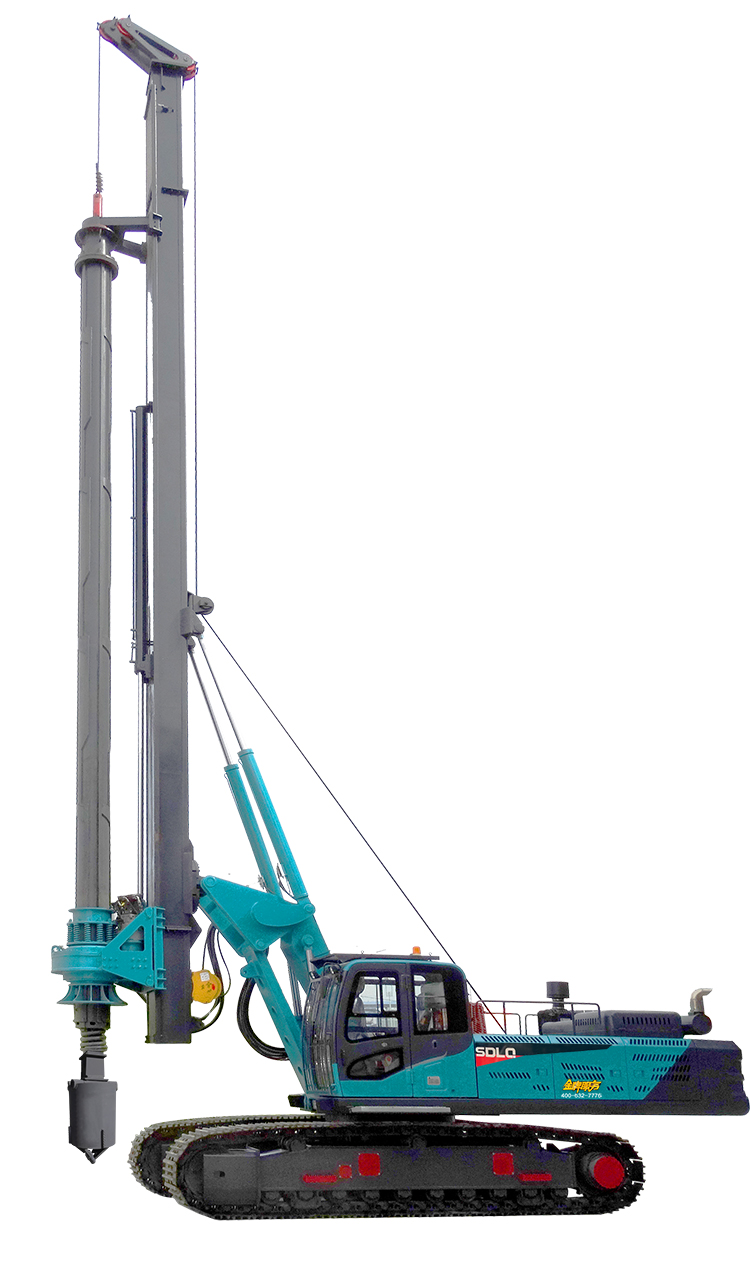

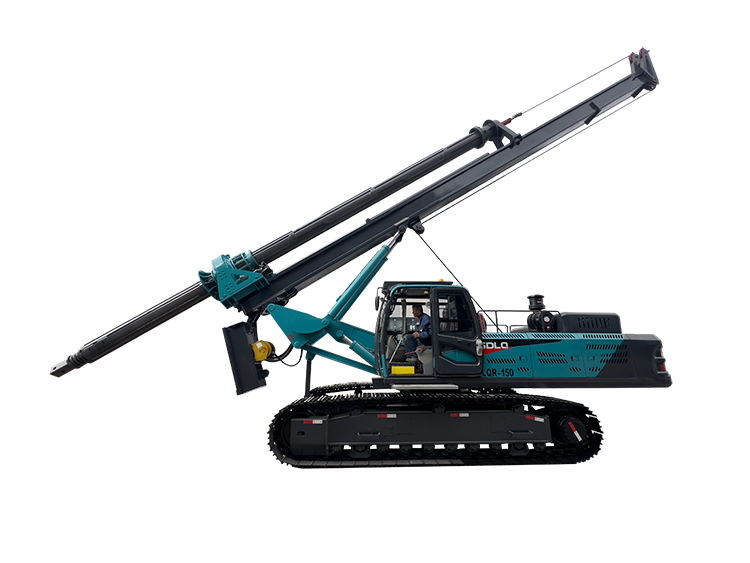

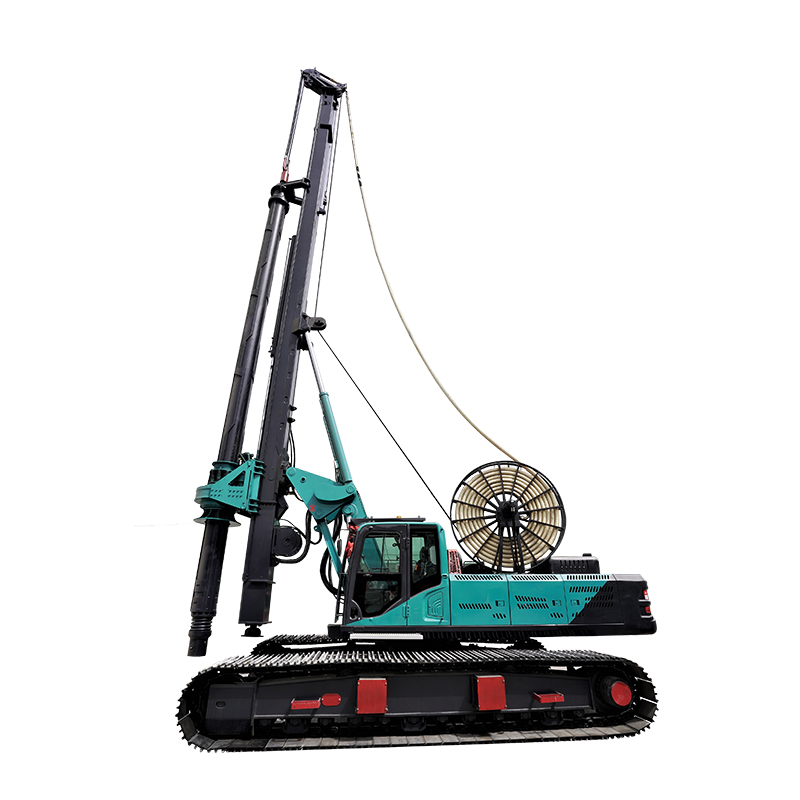

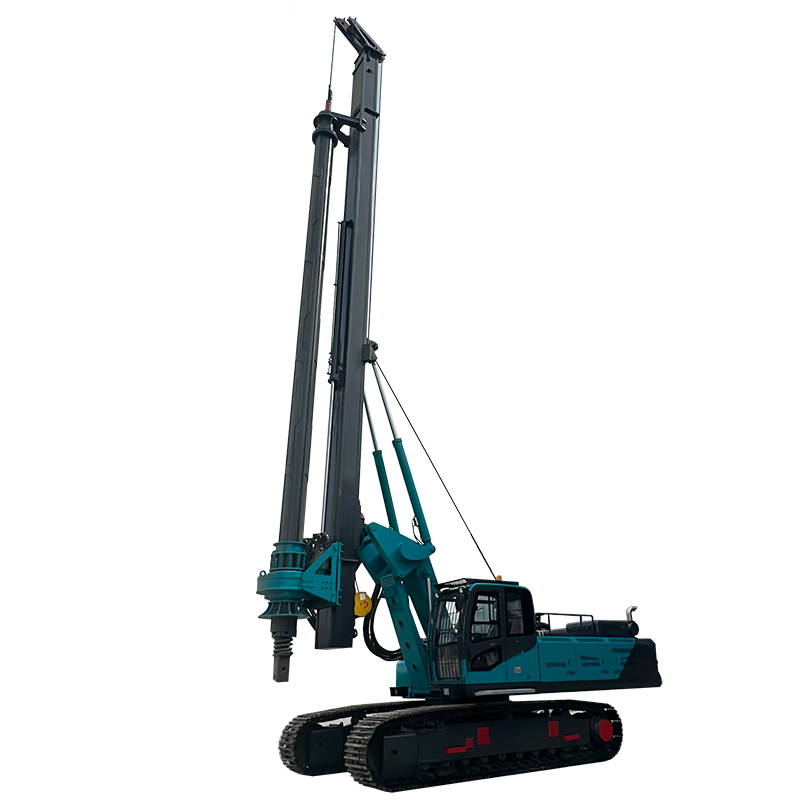

| No. | Parameter / Component | Unit | LQR150 Value |
|---|---|---|---|
| 1 | Maximum drilling diameter | mm | 500-1200 |
| 2 | Maximum drilling depth | m | 40 |
| 3 | Safe drilling operation range (from the rotary center) | mm | 3500 |
| 4 | Drilling rig size under working condition (length * width * height) | mm | 6700*4000*15500 |
| 5 | Drilling rig size in transportation state (length * width * height) | mm | 13500*3000*3650 |
| 6 | Operating weight (including drilling tool under standard configuration) | t | 42.5 |
| 7 | Engine Model: Cummins QSB7 (Emission Stage: 3 Stages) | kW | 169 |
| 8 | Hydraulic system - Maximum working pressure of main pump | MPa | 30 |
| 9 | Power head - Rated output torque | kN·m | 150 (Speed: 8-48 r/min) |
| 10 | Feed cylinder (Max Pressurization / Max Lifting Force) | kN | 120 / 120 (Stroke: 2500 mm) |
| 11 | Main winch lifting force (Wire rope diameter: 24 mm) | kN | 150 (Speed: 60 m/min) |
| 12 | Auxiliary winch lifting force (Wire rope diameter: 12 mm) | kN | 30 (Speed: 55 m/min) |
| 13 | Drill mast inclination (Left/Right & Mast rake) | ° | ±4 |
| 14 | Turntable rotation angle | ° | 360 |
| 15 | Machine speed (Max traveling speed / Max gradient) | km/h | % | 5 | 30% |
| 16 | Chassis track width (Total telescopic width / Wheel distance) | mm | 600 (3000-4000 / 56000) |
| 17 | Drill pipe specification | - | 360 Machine lock |
| 18 | Optional features | - | Remote control walking |
| 19 | Optional features | - | Telescopic chassis |

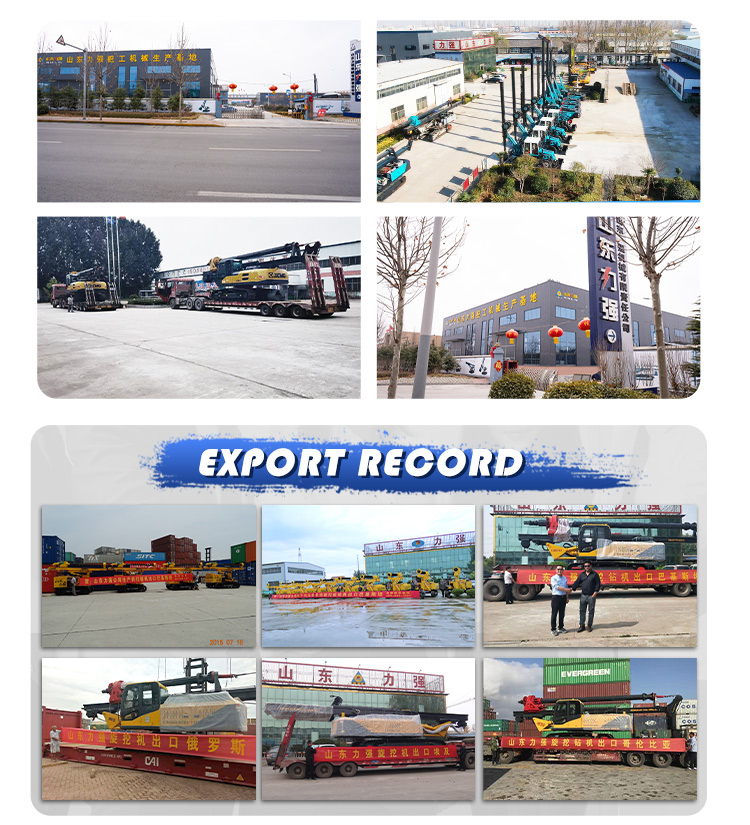

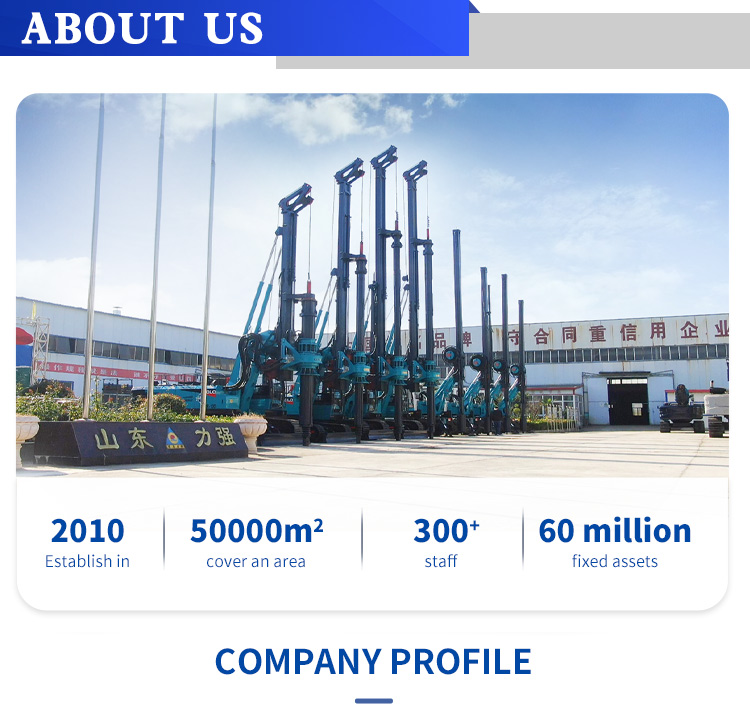

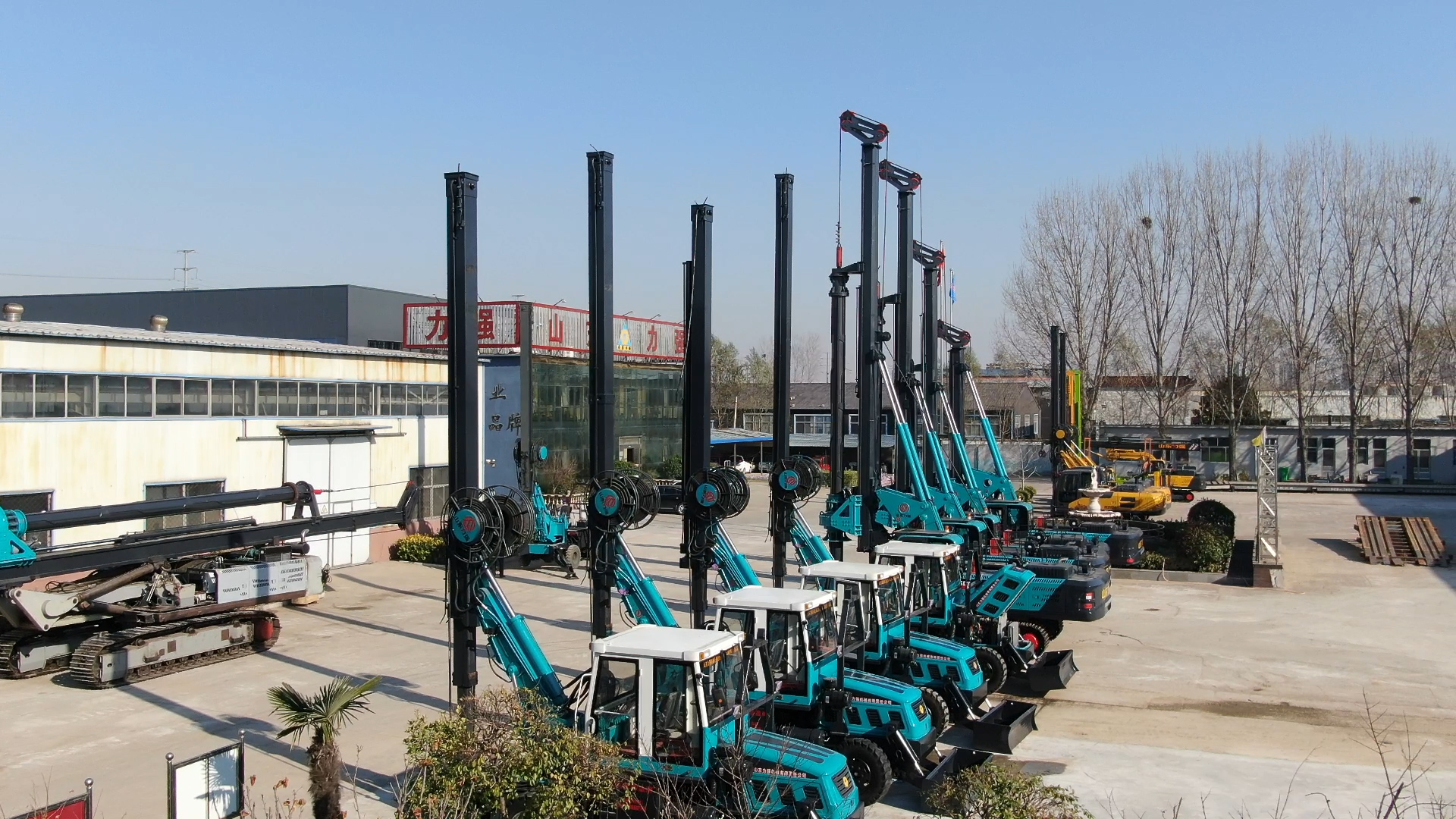

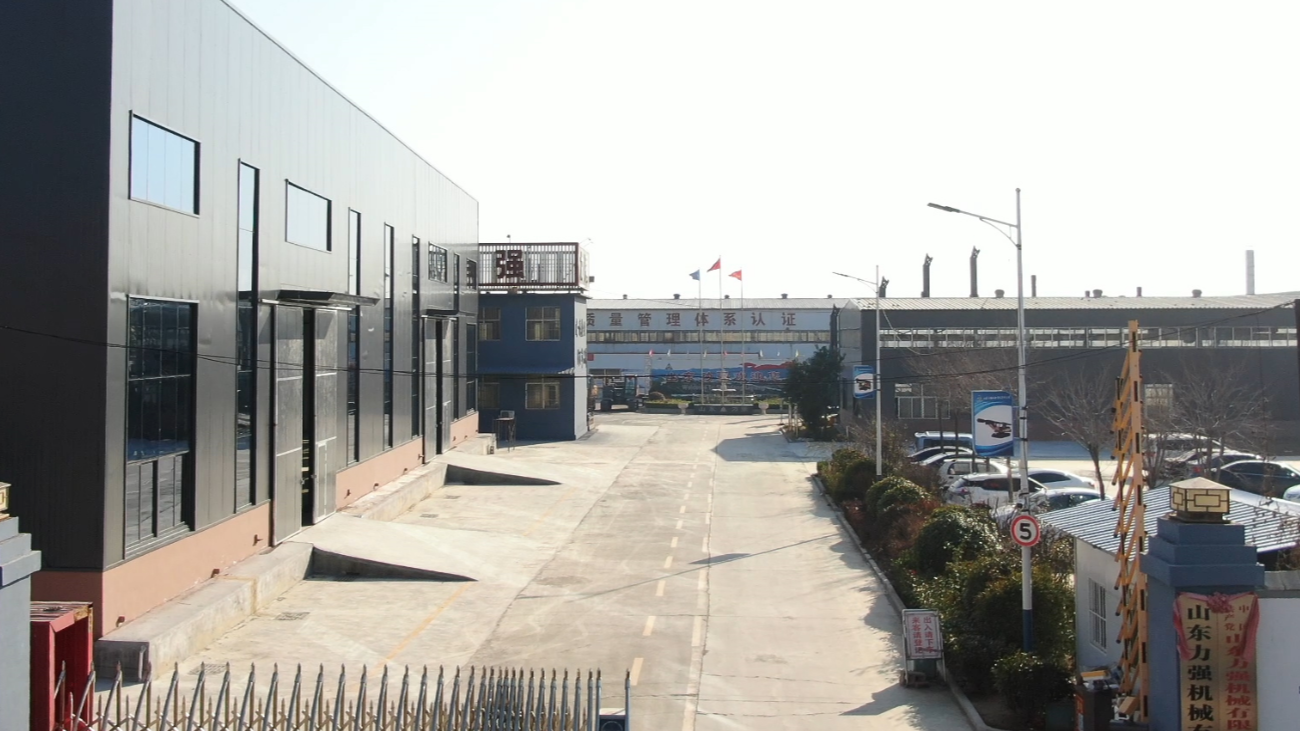

Established in April 2010, the company covers an area of over 50,000 square meters and has fixed assets of over 60 million yuan. The company has five production and processing workshops: organic processing workshop, CNC cutting workshop, welding workshop, assembly workshop, and spraying workshop. It is a comprehensive private enterprise that specializes in the production of engineering machinery such as crawler lock rod rotary drilling machines, crawler square rod rotary drilling machines, wheeled square rod rotary drilling machines, solar photovoltaic pile drivers, wheeled long spiral pile drivers, crawler long spiral pile drivers, crawler CFG pile drivers, high-speed guardrail pile drivers, and crawler grabbing machines.
A modern engineering machinery production and processing enterprise with advanced production equipment and complete after-sales service.

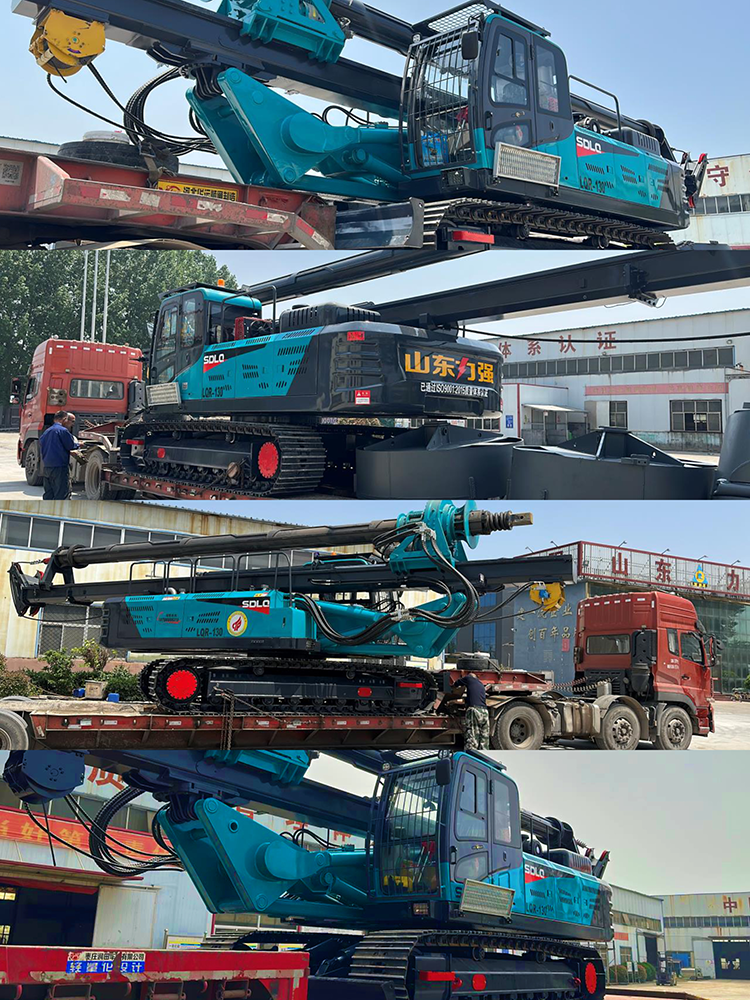

Standard Packing: Standard packing or as your request for hydraulic crawler industrial bore pile drilling machine for sale.
