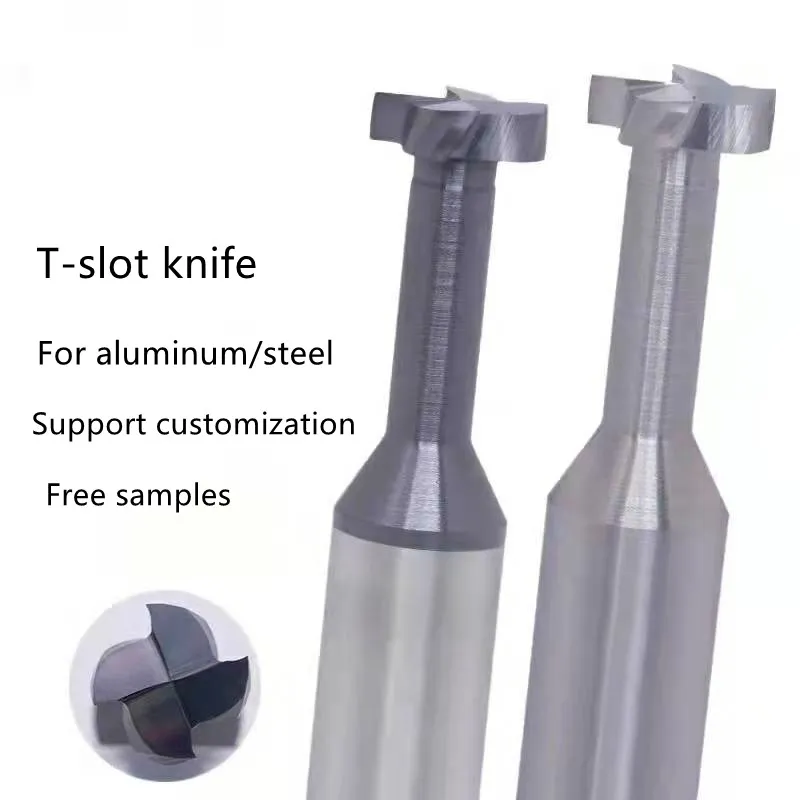

| Product Name | T-type Milling Cutter | ||
| Standard Size | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm | ||

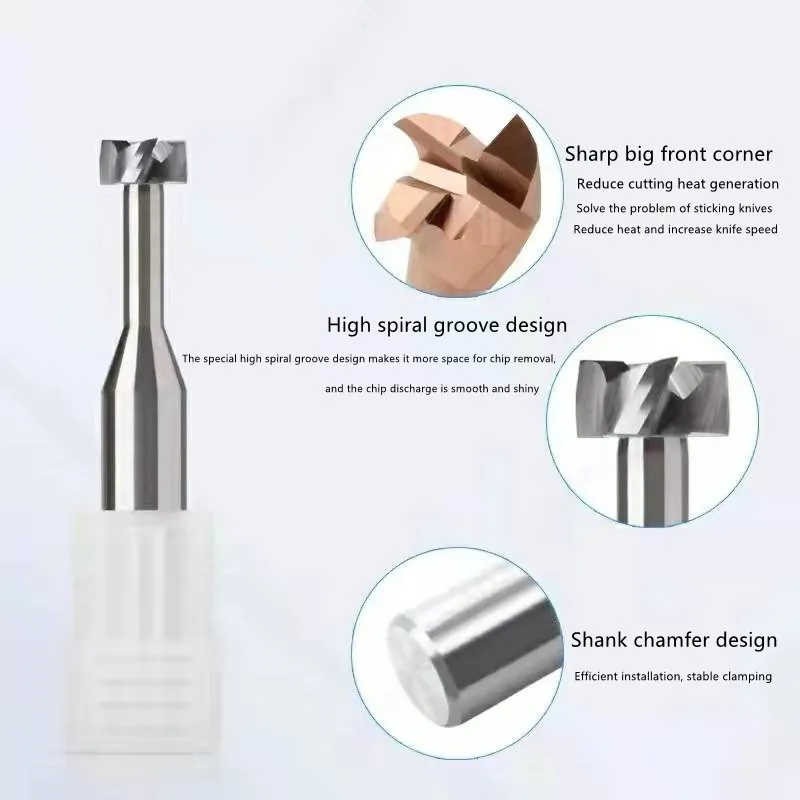

| Advantages | High Precision, Good Surface & Performance | ||
| Material Options | YG10X / MH10FS & UH8 / K44 & K40 / K44UF & K88UF (Cobalt collar) | ||
| Base Material | Tungsten Carbide, Solid Carbide, Cemented Carbide | ||
| HRC Range | 45 / 55 / 58 / 60 / 65 | ||

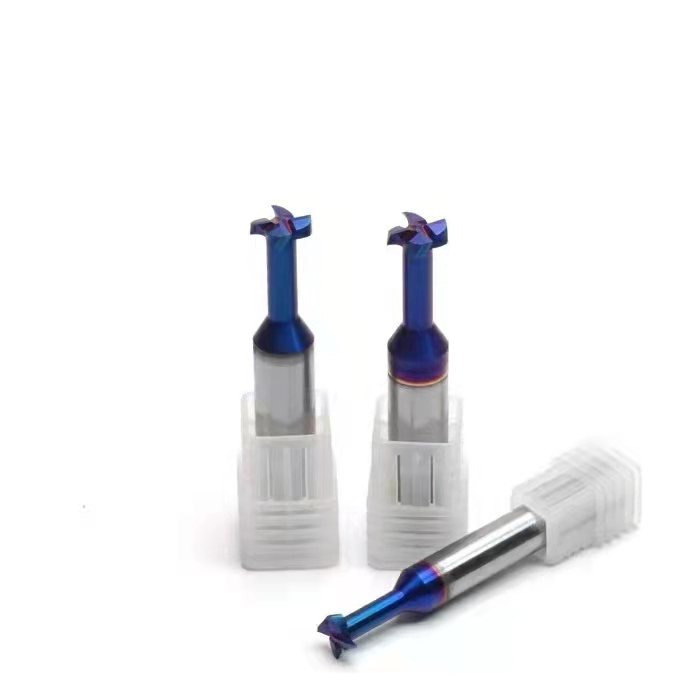

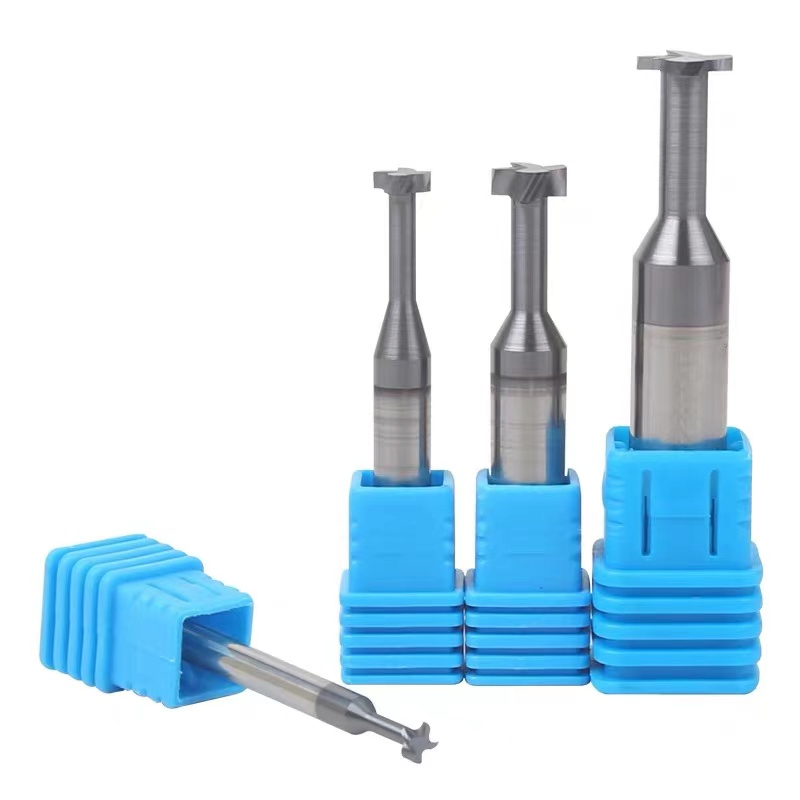

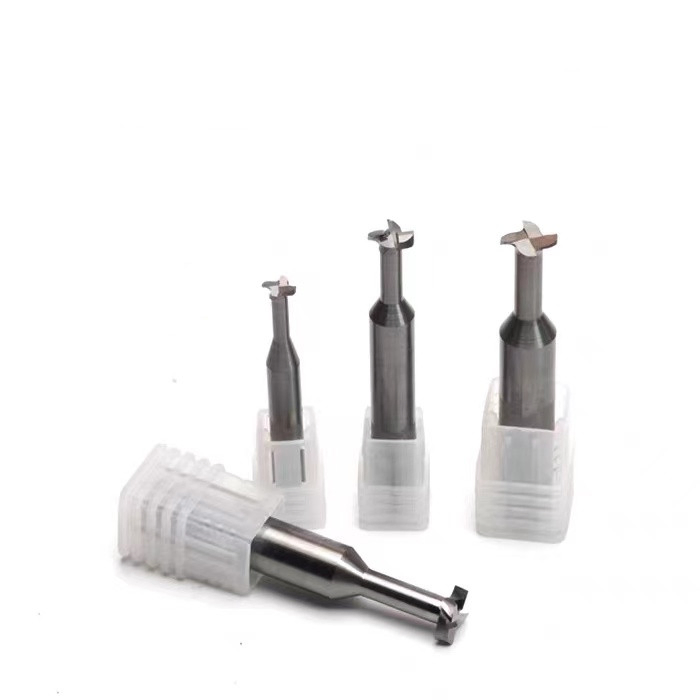

| Product Type | Carbide T-slot milling cutter | ||

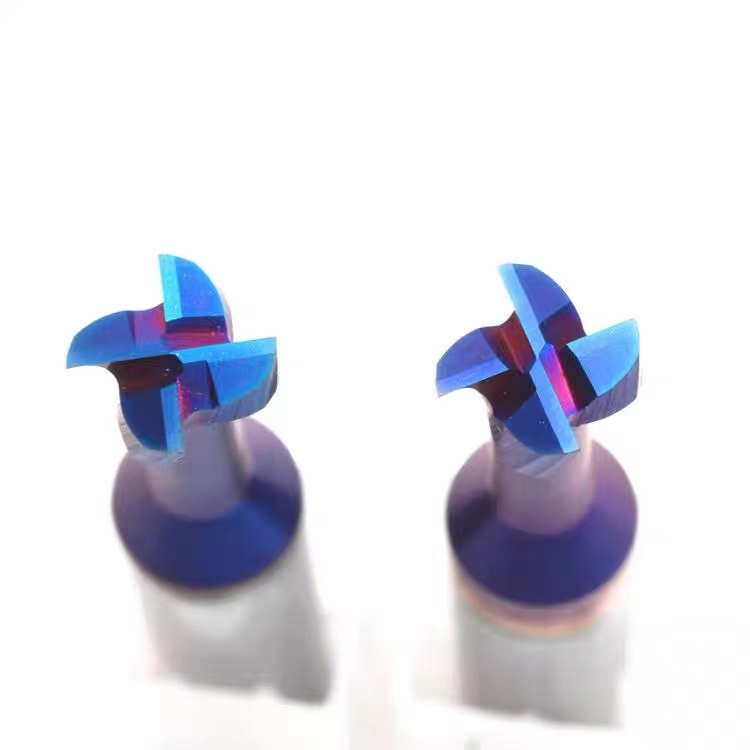

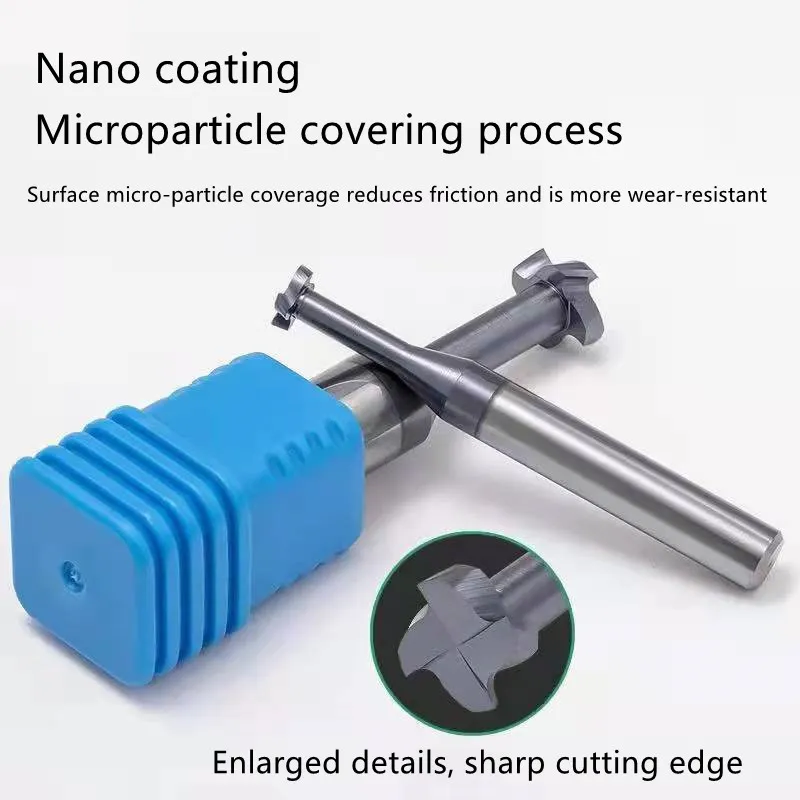

| Coating Options | Altin, Tialn, Tisin, Tin, DLC, Nano, Diamond | ||
| Helix Angle | 10 degree, 15 degree, 25 degree, 35 degree, 45 degree, 55 degree | ||
| Size Customization | Standard size or customized request | ||
| Manufacturing | Imported precision manufacturing machines | ||
| Suitable For | Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc. | ||

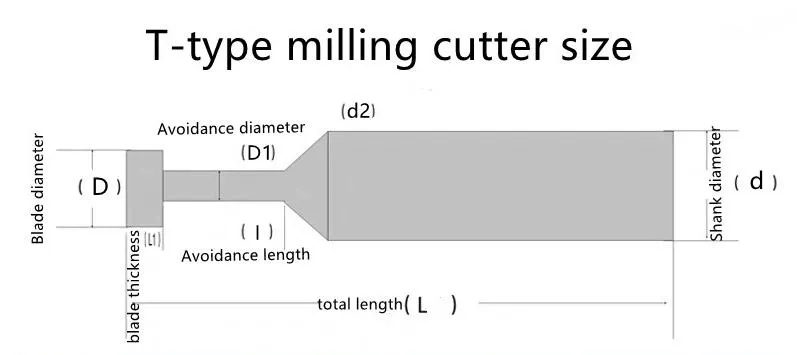

| D (diameter) | l (blade length) | D1 (Avoidance diameter) | I (Avoidance length) | d (Shank diameter) | L (total length) |
|---|---|---|---|---|---|
| D4 | 1 | 1.5 | 6 | 4 | 50 |
| D4 | 1.5 | 1.5 | 6 | 4 | 50 |
| D4 | 2 | 1.5 | 6 | 4 | 50 |
| D4 | 3 | 1.5 | 6 | 4 | 50 |
| D6 | 1 | 2.5 | 8 | 6 | 50 |
| D6 | 1.5 | 2.5 | 8 | 6 | 50 |
| D6 | 2 | 2.5 | 8 | 6 | 50 |
| D6 | 3 | 2.5 | 8 | 6 | 50 |
| D8 | 1 | 3.5 | 8 | 8 | 50 |
| D8 | 1.5 | 3.5 | 8 | 8 | 50 |
| D8 | 2 | 3.5 | 8 | 8 | 50 |
| D8 | 3 | 3.5 | 8 | 8 | 50 |
| D10 | 1 | 4 | 10 | 10 | 75 |
| D10 | 1.5 | 4 | 10 | 10 | 75 |
| D10 | 2 | 4 | 10 | 10 | 75 |
| D10 | 3 | 4 | 10 | 10 | 75 |
| D12 | 1 | 5 | 12 | 12 | 75 |
| D12 | 1.5 | 5 | 12 | 12 | 75 |
| D12 | 2 | 5 | 12 | 12 | 75 |
| D12 | 3 | 5 | 12 | 12 | 75 |
| Packaging & Delivery | |||
| Selling Units | Single item | ||
| Single Package Size | 8.6 X 1.3 X 1.3 cm | ||
| Single Gross Weight | 0.06 kg | ||
| Package Type |
1. One plastic pipe pack one piece, 10 pcs per group 2. Put goods enclosed with air bubble paper into box 3. Other package is accepted according to customer's requirement |
||
| Packaging View |
|
||
| Lead Time | ||
|---|---|---|
| Quantity (Pieces) | 1 - 100 | >100 |
| Est. Time (days) | 7 | To be negotiated |
