Single Teeth Thread Milling Cutter for Steel

Customization:	Available
Shank Type:	Straight Shank
Included Angle:	90 degrees

Overview

Basic Info

Model NO.	Thread end mill
Flute Number	2-6t
Application	Steel, Alloy, Cast Iron
HRC	45/55/60/65
OEM	Accept
Samples	Available
Size	M0.8-M20
Suitable for	Cast Iron, Carbon Steel, Aluminum, Copper
Customized Support	OEM, ODM, OBM
Coating	Coating
Tooth Form	Spiral Tooth
Tooth Space	Dense Tooth
Structure	Integral
Material	Tungsten Steel
Type	Vertical Milling Cutter
HS Code	8207709000
Production Capacity	50000PCS/Month

Packaging & Delivery

Package Size	36.00cm * 25.00cm * 18.00cm
Package Gross Weight	1.000kg
Transport Package	1PC in a Plastic Tube, 10PCS a Group

Product Description

Solid Carbide Threading Endmills for Internal Thread

Engineered for general-purpose applications as well as specific, wide-ranging industries spanning from automotive and taps to medical and dental manufacturing.

Size Range: M3 - M27
Premium Coatings Available: AlTiN / TiAlN / TiN / TiSiN / Nano coating
Small Thread Design: Executed effortlessly due to the micro-cutting diameter
Extremely Fast Machining: Enabled by multi-flute geometry
High Rigidity & Accuracy: Engineered to minimize deflection and run-out
Hard Material Processing: Unique design suitable for machining materials up to 63 HRc
Versatile Clamping Options: Cylindrical shank ideal for hydraulic and shrink-fit systems

Technical Specifications Summary
Product Name	Solid Carbide Threading End Mill
Material	Tungsten Carbide
Flutes	Single tooth / Three teeth / Full teeth
Tolerance	H6
Hardness (HRC)	55 Degree
Application Type	High-speed cutting
Machine Tool Type	CNC Machine, Engraving Machine, etc.

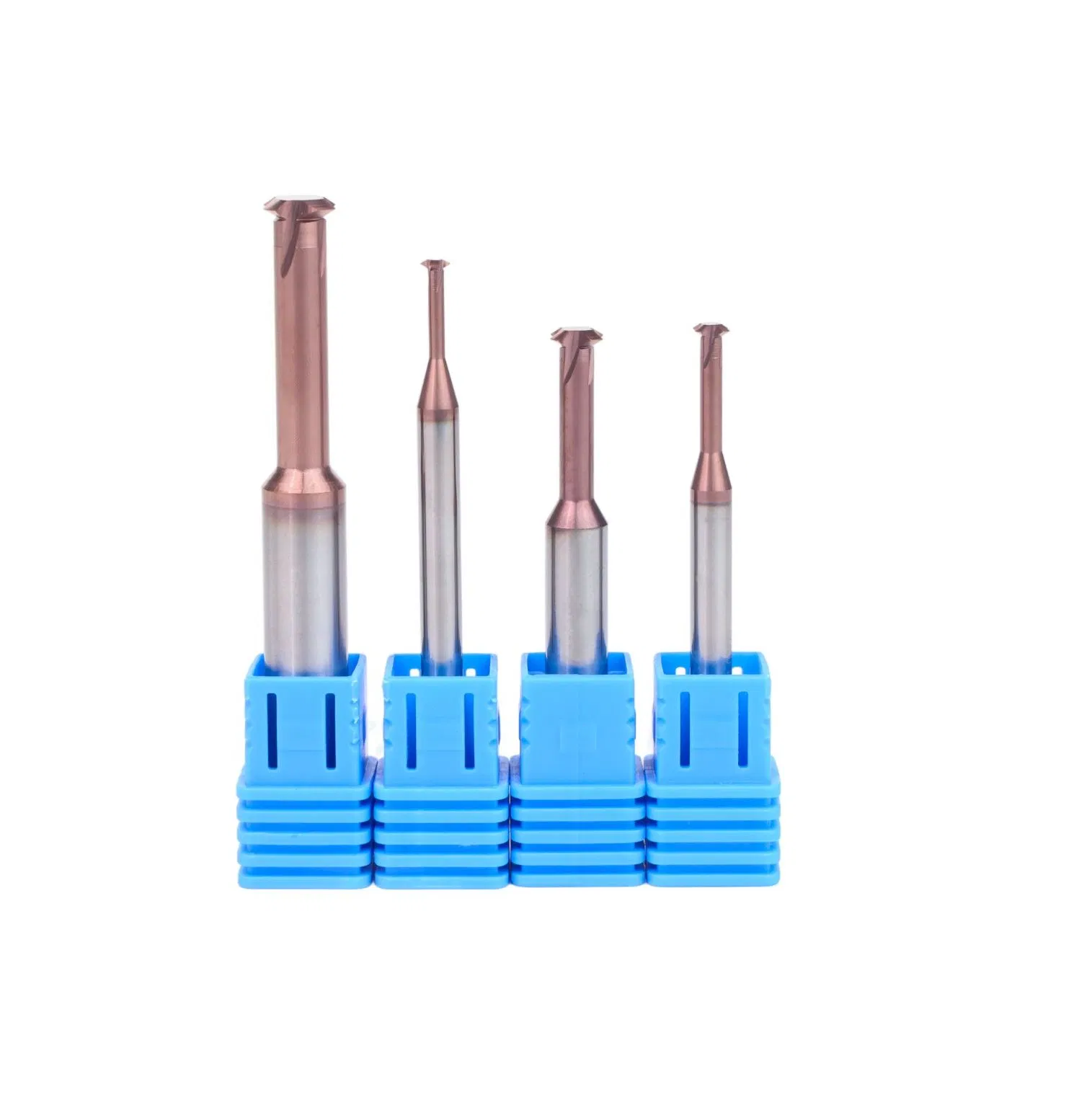

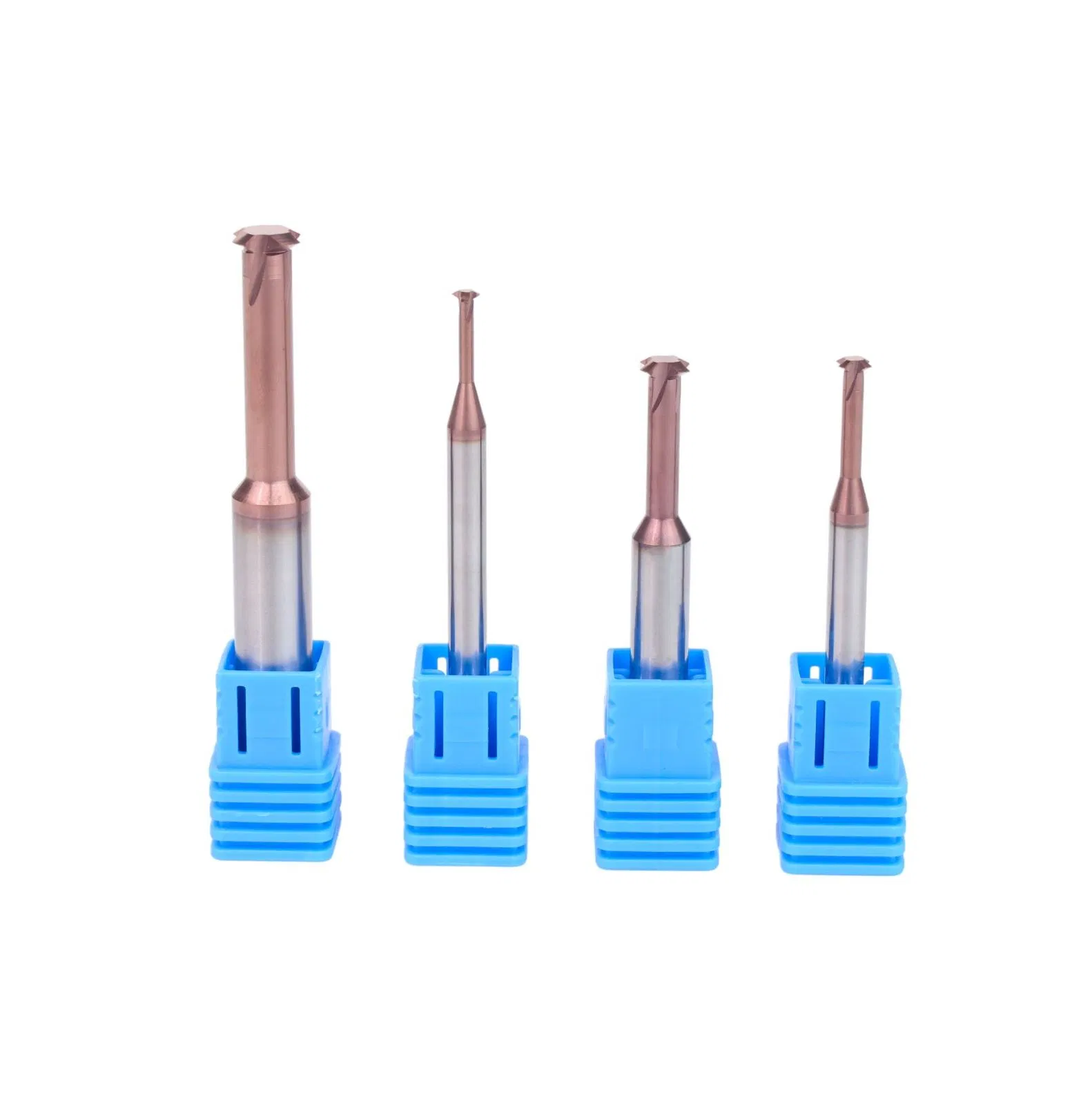

Product Show

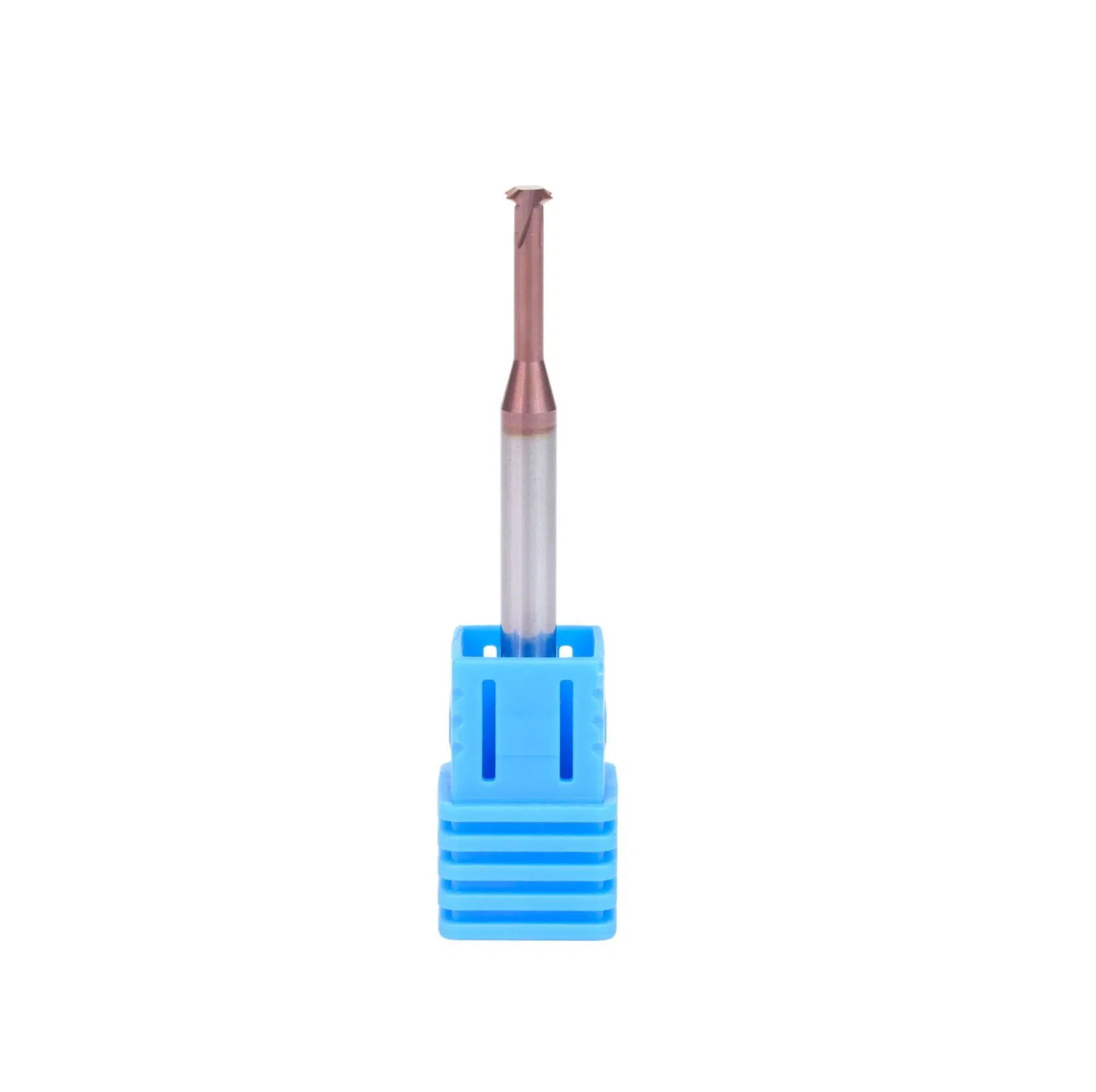

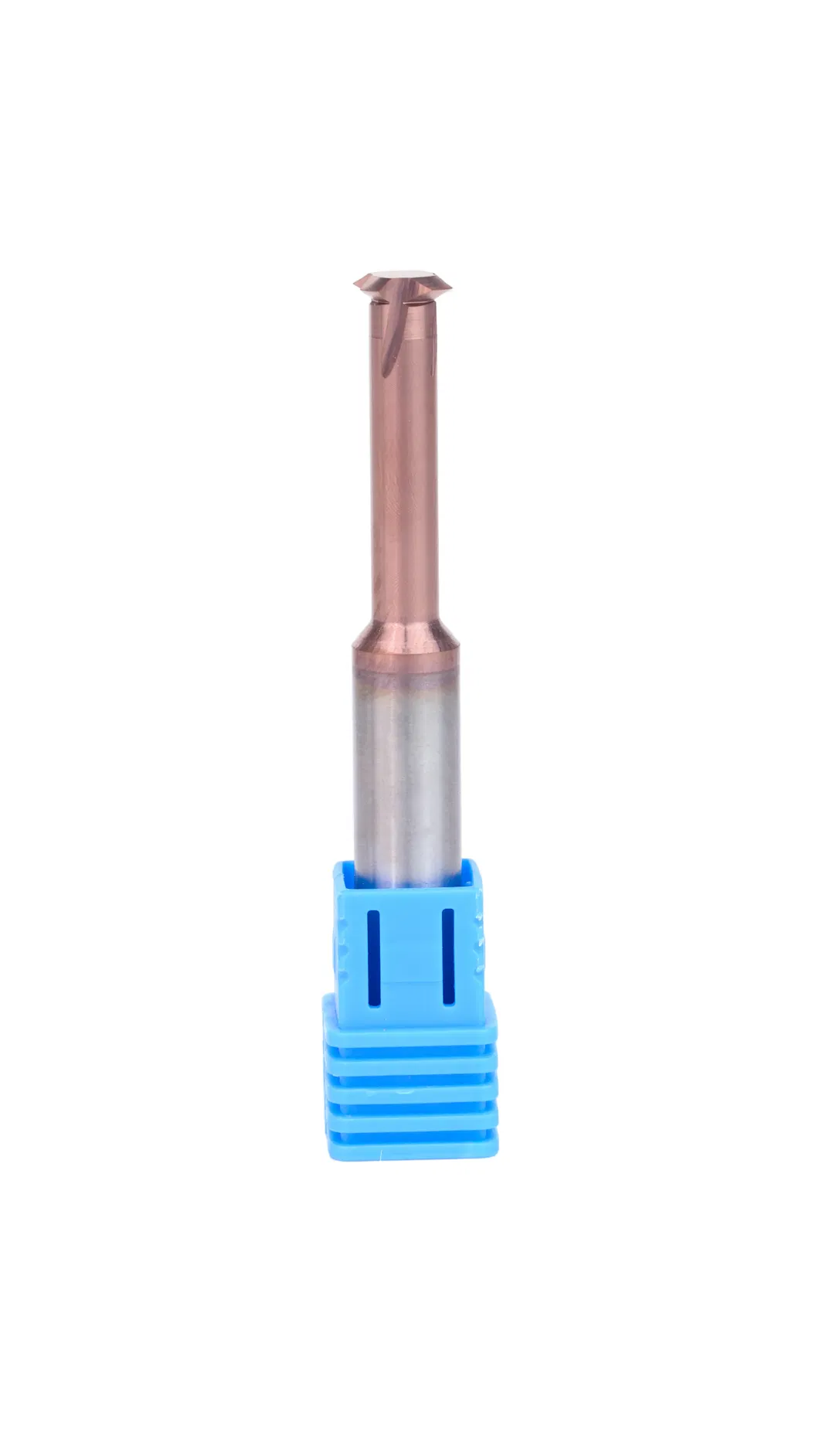

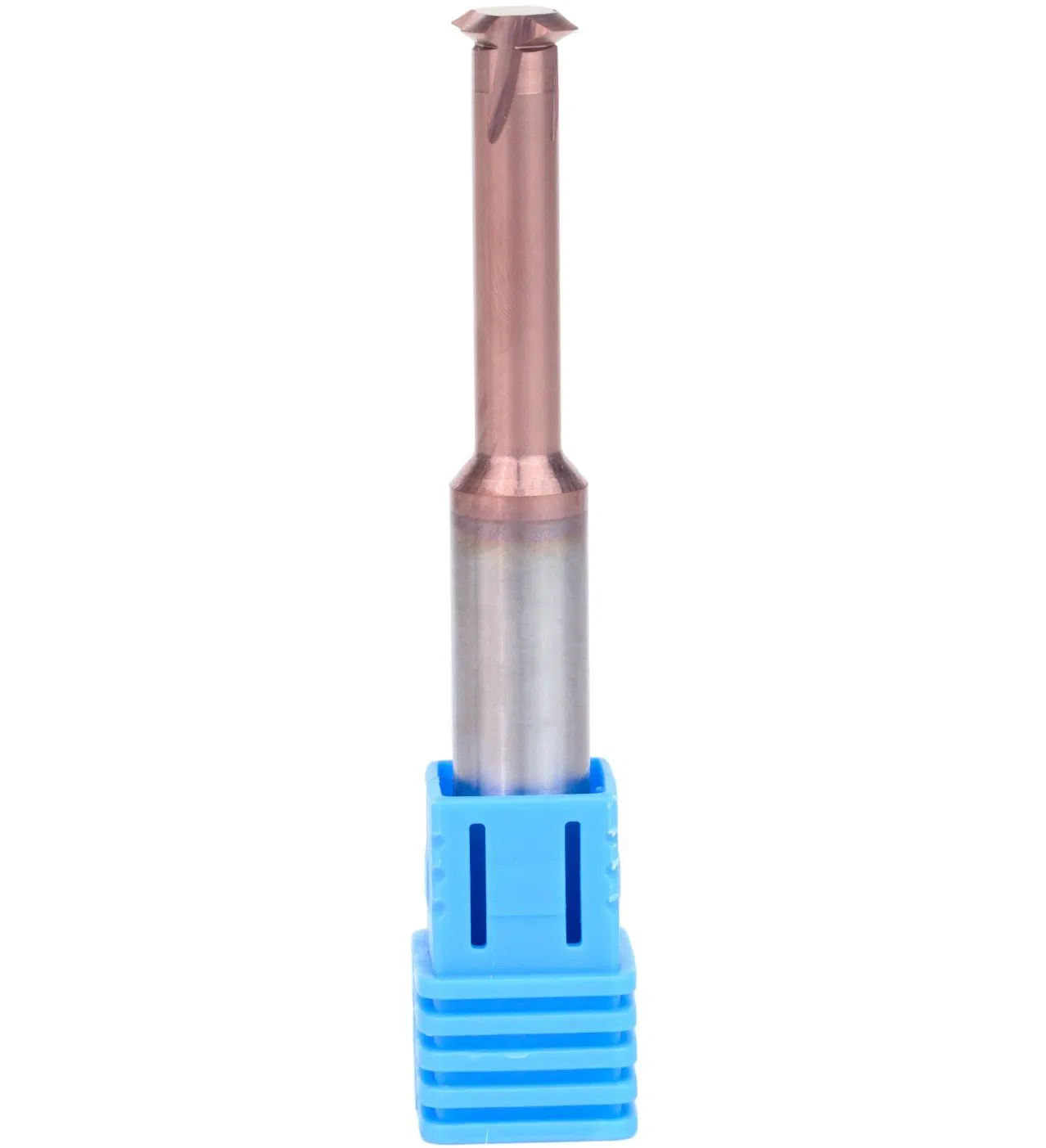

Single Teeth Thread Milling Cutter Detail

Product Specification

Size	P	d1	d2	L1	D	L	F
M1.0	0.25	0.73	2.0	3.0	4.0	50	3
M1.2	0.25	0.92	2.4	3.6	4.0	50	3
M1.4	0.3	1.05	2.8	4.2	4.0	50	3
M1.6	0.35	1.2	3.2	4.8	4.0	50	3
M2.0	0.4	1.55	4.0	6.0	4.0	50	3
M2.5	0.45	2.0	5.0	7.5	4.0	50	3
M3.0	0.5	2.4	6.0	9.0	4.0	50	3
M4.0	0.7	3.15	8.0	12	4.0	50	3
M5.0	0.8	4.0	10	15	4.0	50	3
M6.0	1.0	4.8	12	18	6.0	50	3
M8.0	1.25	6.0	16	24	6.0	50	4
M10	1.5	8.0	20	30	8.0	60	4
M12	1.75	10	24	36	10	75	4
M14	2.0	10	10.1	28	10	75	4
* Other custom models are available. Please contact us for details.

Milling Cutter Dimension Parameters Sheet

Packaging & Shipping

Package Details

Standard packing features a clear laser brand on the cutter's shank. Each cutter is packaged individually in a robust plastic tube, grouped in packages of 10.

Delivery Time & Logistics

Sample Dispatch: Within 2-7 working days.
Formal Orders: Delivery in 7-30 working days depending on order volume.
Logistics Network: Fully integrated with DHL, FedEx, UPS, TNT, and EMS.

Terms & Payment Options
Accepted Payment Types	T/T, Western Union, MoneyGram, L/C
Minimum Order Qty	Accepts custom small batches & samples

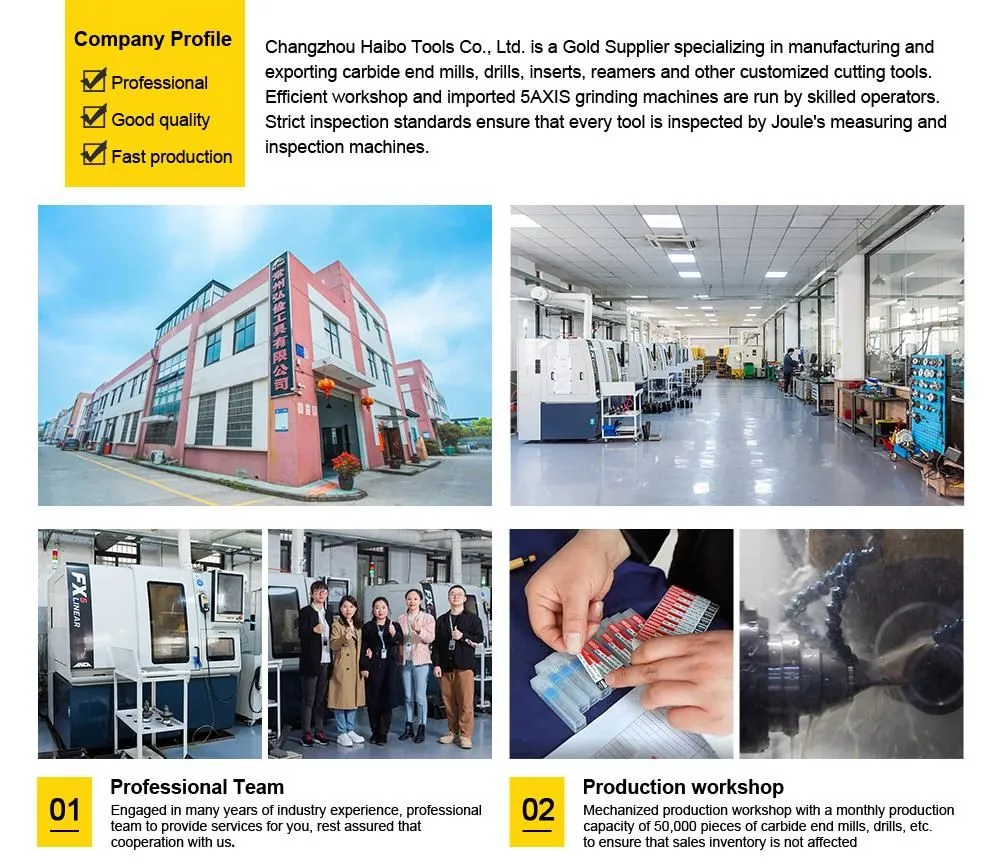

Company Profile

We are a leading high-tech enterprise specializing in the design, manufacture, and export of high-grade carbide cutting tools. Our main product catalog includes high-precision Carbide End Mills, Drills, Inserts, Reamers, and complex custom tools designed for target metalworking environments.

Our modern workshop relies on imported 5-axis grinding machinery operated by a highly experienced technical team. Every batch undergoes strict quality control metrics using advanced measuring systems like Zoller inspection machines. With an average monthly output of 50,000 pieces of premium carbide tools and an active inventory exceeding 20,000 tools, we ensure fast turnaround times and immediate shipment for urgent demands.

Exhibition Events

Frequently Asked Questions

1. What are the key benefits of using solid carbide thread end mills over traditional taps?

Solid carbide thread end mills offer superior versatility, allowing one tool to machine different thread diameters of the same pitch. They reduce the risk of tool breakage in expensive components, produce high-quality surface finishes, and easily handle harder materials (up to 63 HRC).

2. Which materials can these thread milling cutters process?

These cutters are engineered for a wide range of materials, including carbon steel, stainless steel, cast iron, copper, alloy steel, and mold steel. The high-performance carbide composition provides excellent resistance against wear in abrasive materials.

3. How does the spiral tooth design improve machining efficiency?

The spiral tooth configuration ensures smoother chip evacuation and reduces cutting forces during execution. This minimizes vibrations, increases tool life, and allows for much higher feed rates compared to straight flute designs.

4. Can I request customized dimensions or OEM branding?

Yes, we provide full support for OEM, ODM, and OBM customizations. We can modify sizes, coatings, flutes, and mark custom logos on the shanks based on your specific application requirements.

5. What quality inspection measures are utilized for your tools?

Our production uses strict quality assurance workflows. Each carbide thread milling cutter is tested using high-precision Zoller measuring and inspection systems to verify compliance with geometric tolerances before packaging.

6. What is the standard packaging and dispatch time for orders?

Cutters are individually packed in protective plastic tubes, grouped by 10. Sample shipments are dispatched in 2-7 working days, while bulk orders take between 7-30 working days depending on quantity.
