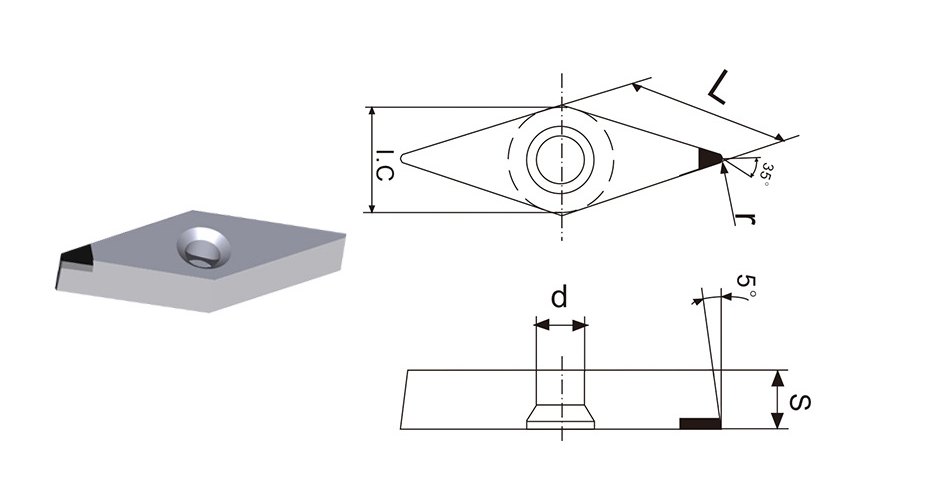

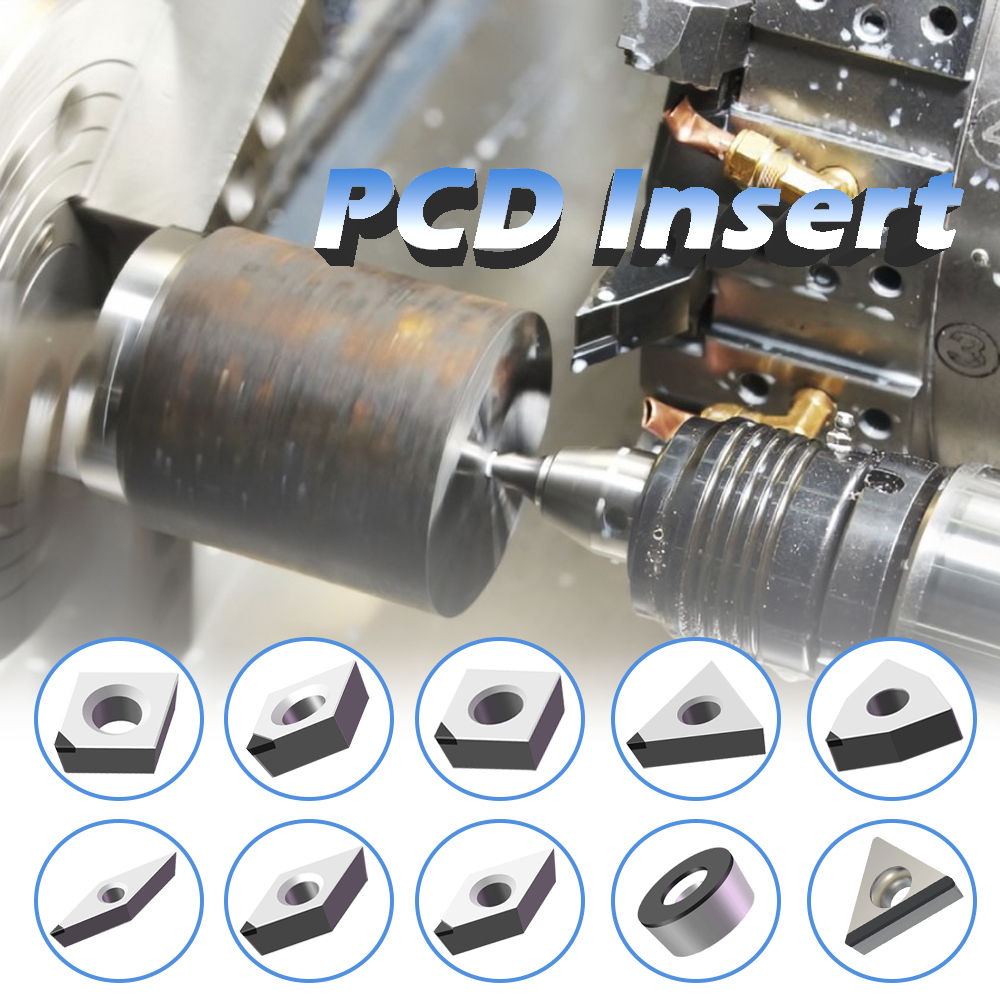

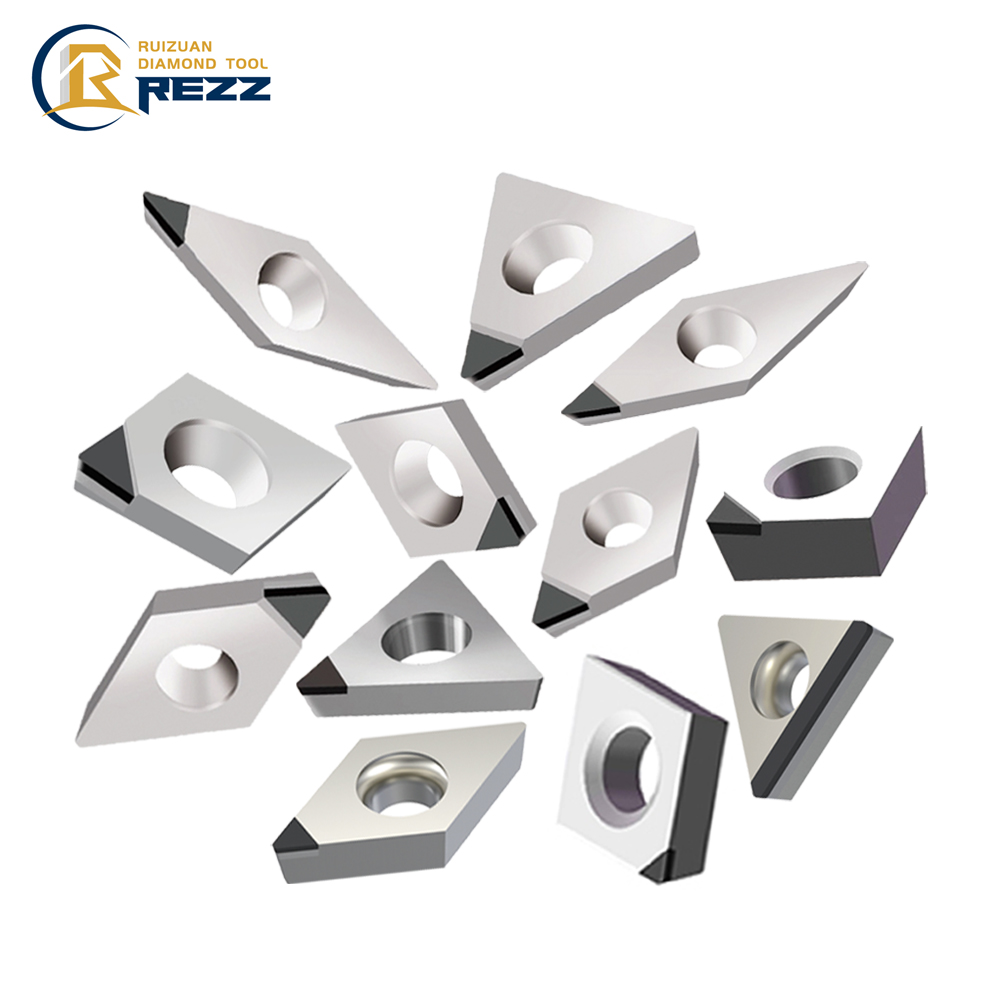

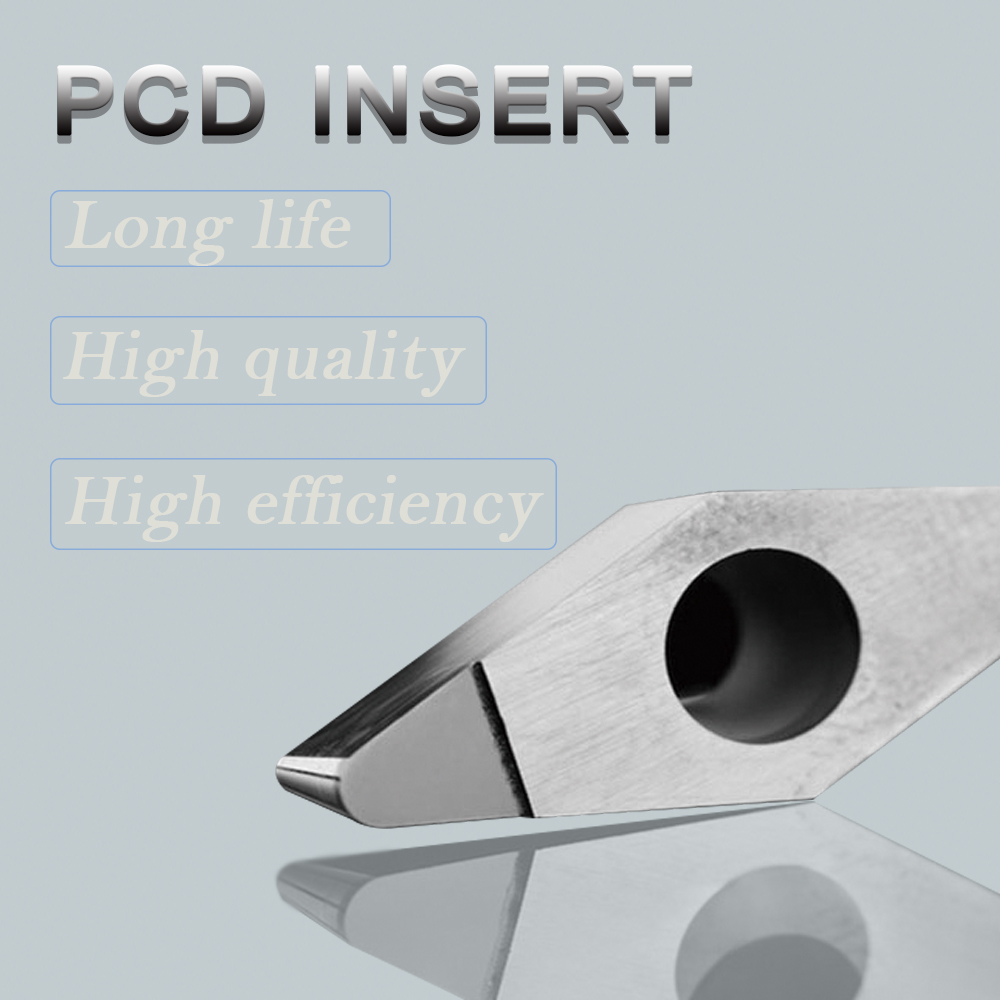

PCD (Polycrystalline Diamond) is a synthetic diamond product that is produced by sintering together selected diamond particles with a metal matrix, using sophisticated technology. The diamond and matrix, when sintered together under high temperatures and pressures, creates a PCD tool blank that is high in uniform hardness and is abrasive resistant in all directions. PCD Inserts is made of PCD tips (cutting from PCD blank) and a carbide (or other material) substrate. According to different machining requests, it can be PCD single point cutting tools and multiple cutting edges tools.

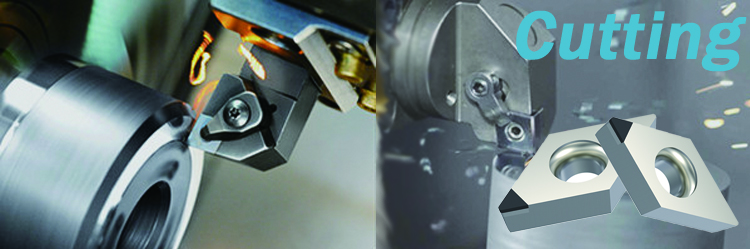

Cutting refers to the processing method of using cutting tools (including cutting tools, grinding tools and abrasives) to cut off the excess material layer on the blank or workpiece into chips, so that the workpiece can obtain the specified geometry, size and surface quality.

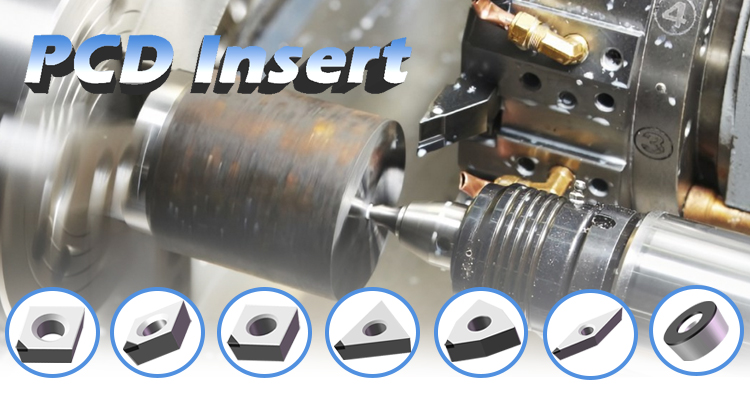

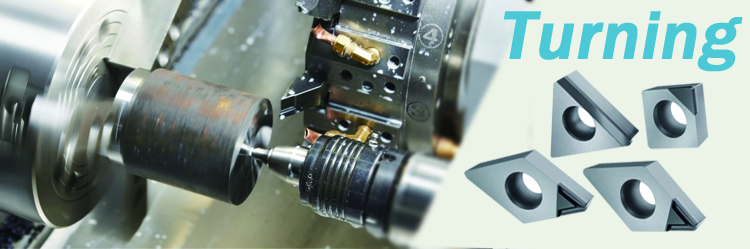

Turning is a cutting process in which the workpiece is rotated and the turning tool moves in a straight line or a curve in the plane. Turning is generally carried out on a lathe to process the inner and outer cylindrical surfaces, end surfaces, conical surfaces, forming surfaces and threads of the workpiece.

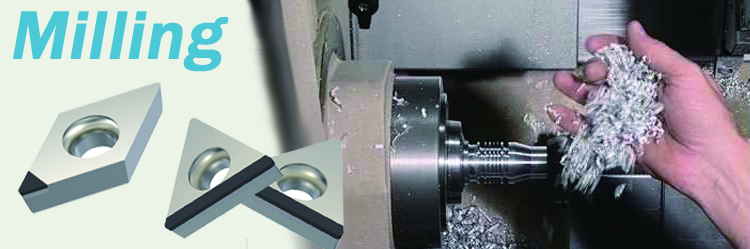

Milling is a high-efficiency machining method that uses a rotating multi-blade tool to cut a workpiece. When working, the tool rotates (for the main movement), the workpiece moves (for the feed movement), and the workpiece can also be fixed, but at this time the rotating tool must still move (to complete the main movement and the feed movement at the same time).
| Materials to be Processed | Products | |
|---|---|---|
| Nonferrous Metal | Aluminum, Aluminum Alloy | Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles. |
| Aluminum, Aluminum Alloy | Tank body, shell and compressor parts for airplanes and electromechanical products. | |
| Aluminum, Aluminum Alloy | Precision machinery parts for cameras, duplicators and metrical instruments. | |
| Aluminum, Aluminum Alloy | Parts for pump body and oil press. | |
| Copper, Copper Alloy | Axle, bearing bush, bearing and pump body for internal combustion engines and ships. | |
| Copper, Copper Alloy | Parts for various instruments, dynamo commutators, printed boards and electronic apparatus. | |
| Copper, Copper Alloy | Bearing, bearing bush, valve and shell body. | |
| Tungsten Carbide | Sinter such as valve seat and cylinder, and semi-finished sinter. | |
| Others | Various nonferrous metal parts such as magnesium and zinc. | |
| Nonmetal | Wood | Hardwood, artificial board, artificial abrasion resistant fiberboard. |
| Reinforced Plastic | Glass fiber and carbon fiber reinforced plastic. | |
| Rubber | Roller for paper and rubber ring. | |
| Graphite | Carbon rod. | |
| Ceramic | Sinter such as sealing ring and plunger piston, and semi-finished sinter. | |
We are committed to providing customers with tools for grinding, cutting, turning, milling, drilling, and reaming. It includes abrasive tools & wheels, diamond/CBN wheels & tools, PCD/PCBN inserts & tools, tungsten carbide inserts & tools, and HSS steel tools & cutters. Our tools are applied in many different industries. Our customers find good applications in woodworking, metalworking, Automotive, Stone, Glasses, gemstones, Industrial ceramic, oil & Gas drilling and Constructions industries. In these industries our products are performing well on long lifetime, high-efficiency and less unit-cost.
