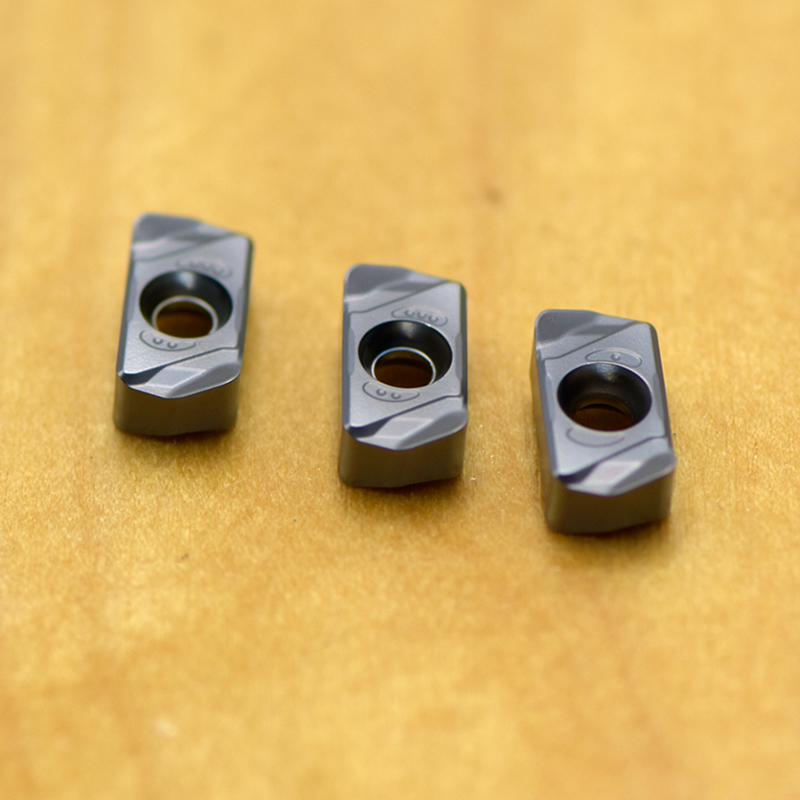

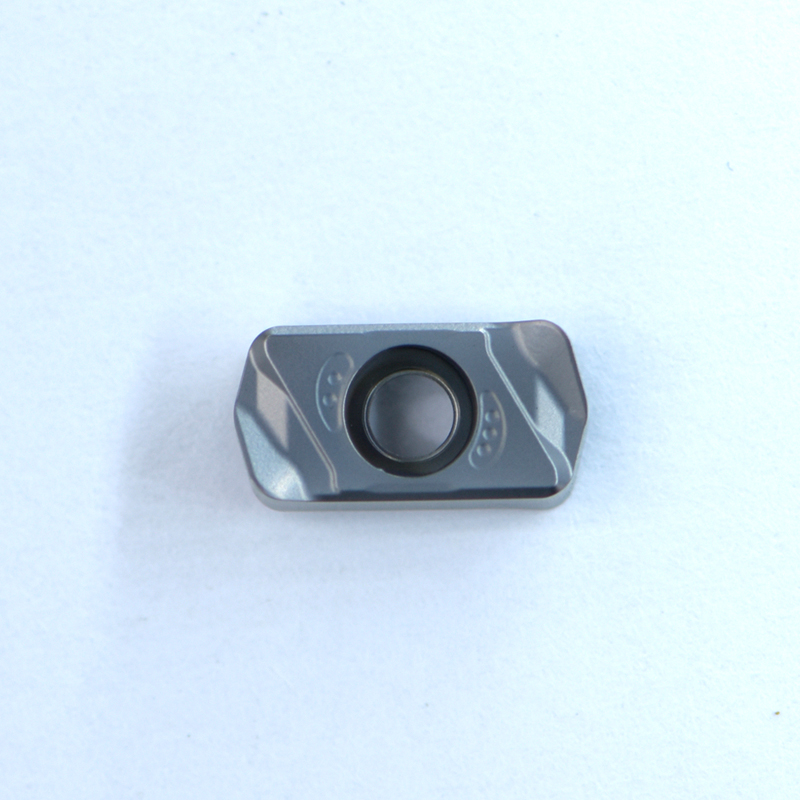

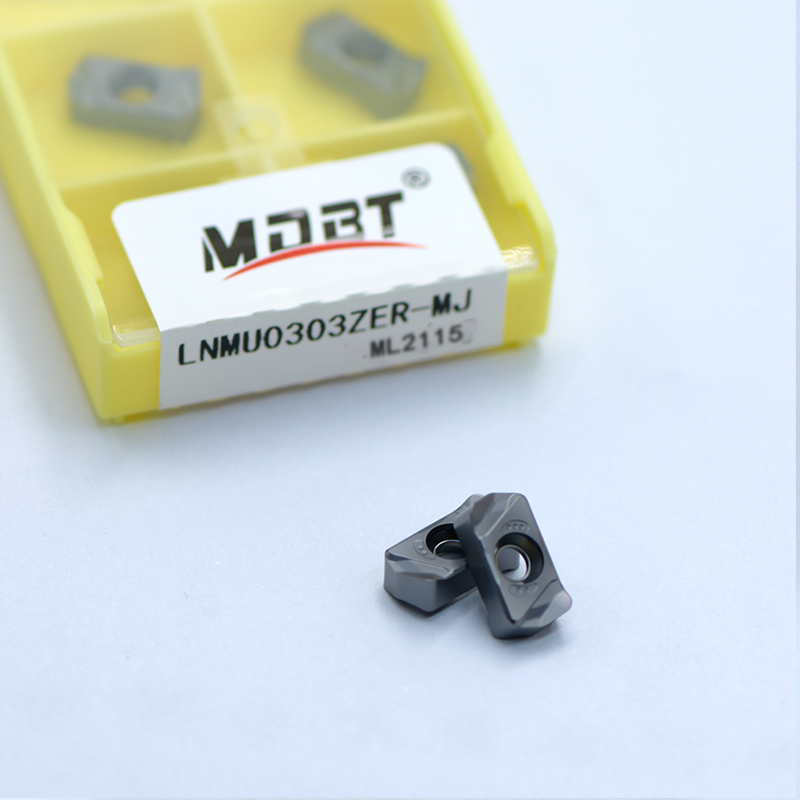

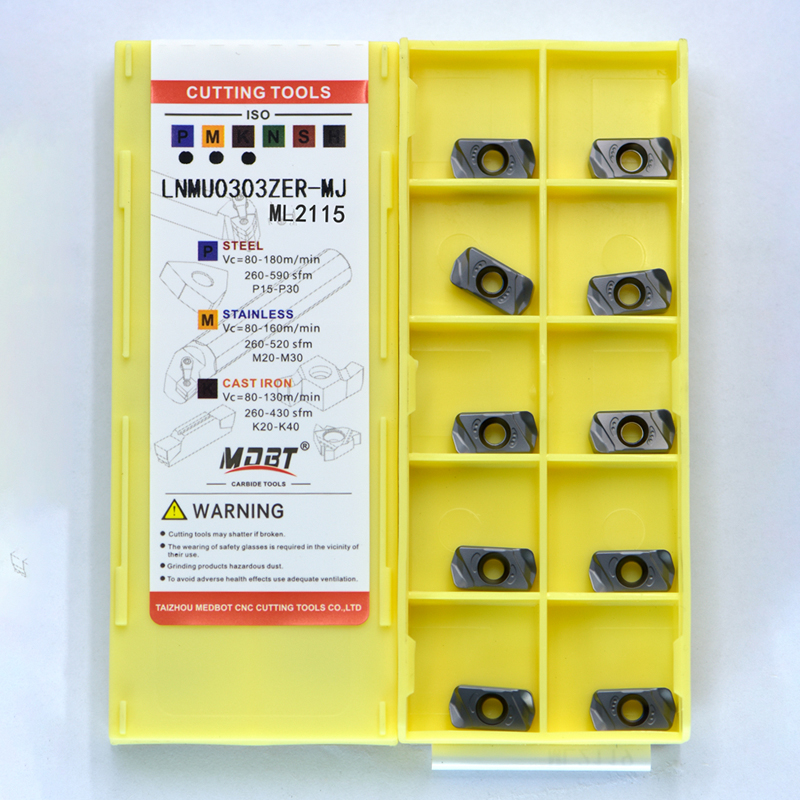

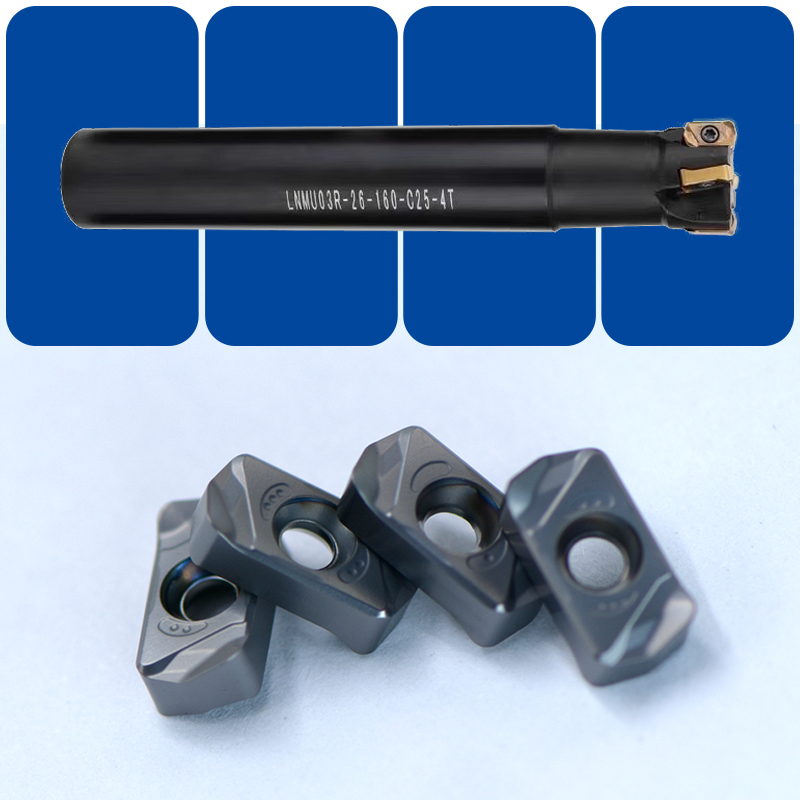

LNMU0303ZER-MJ LNMU Insert Indexable Milling Insert Carbide APKT Blades MJ Grade CNC Mill Cutter Tool Indexable Milling Insert

Company Overview

Manufacturing & trading are united in a 5,000 m² plant, delivering ISO-grade CNC tooling at speed. Tailored machining programs cut your cost-per-part and accelerate production. Let’s shape the next era of smart manufacturing together.

✓ Turning inserts & holders • Solid & indexable drills • Hole saws • Taps • Torque wrenches

✓ 8,000 + SKUs · 98% ready to ship

✓ 24 h ex-stock · 3–7 days OEM

✓ 12 application specialists, on-call

✓ KR · US · MX · DE · BR · 30 + others

✓ ISO 9001 · SGS-tested coatings

✓ Pre-sales machining advice • Lifetime after-sales support

Product Display

Product Application & Parameters

Flange 40Cr

Machining Methods: Wet-type continuous finish turning of external & end face Insert: DNMG150408-GF Cutting Conditions: Vc=338.5m/min, f=0.14~0.32mm/r, ap=0.2mm

Bearing GCr15

Machining Methods: Wet-type continuous internal roughing and semi-finishing Insert: VNMG160408-GM Cutting Conditions: Vc=200m/min, f=0.30mm/r, ap=0.30~1.0mm

Automobile Hub unit steel 65Mn

Machining Methods: Wet-type continuous finish turning of external & end face Insert: WNMG080408-GF Cutting Conditions: Vc=330m/min, f=0.3mm/r, ap=0.8mm

65Mn

Machining Methods: Wet-type continuous rough turning of external & end face Insert: WNMG080412-GM Cutting Conditions: Vc=260m/min, f=0.32mm/r, ap=1.0mm

Flange steel 45#

Machining Methods: Wet-type rough & finish turning of heavy interrupted end face Insert: WNMG080408-GM Cutting Conditions: Vc=180~358m/min, f=0.275mm/r, ap=1.3/3mm

Quenched and tempered steel 55#

Machining Methods: Wet-type finish turning of continuous external and interrupted end face Insert: WNMG080408-GM Cutting Conditions: Vc=282.6m/min, f=0.225mm/r, ap=0.5mm

Quenched and tempered steel 55#

Machining Methods: Wet-type finish turning of continuous external and interrupted end face Insert: WNMG080408-GM Cutting Conditions: Vc=285.7m/min, f=0.27mm/r, ap=0.6mm

Stainless steel SUS304

Machining Methods: Wet-type semi-finish turning of continuous conical surface & end face Insert: WNMG080408-BM Cutting Conditions: Vc=150~243m/min, f=0.2mm/r, ap=0.8mm

HT250

Machining Methods: Rough turning of external and end face Insert: WNMG080412 Cutting Conditions: Vc=415m/min, f=0.15mm/r, ap=0.4mm

Stainless steel SUS304

Machining Methods: Wet-type finish turning of continuous external & end face Insert: VNMG160408-BF Cutting Conditions: Vc=171~180m/min, f=0.08mm/r, ap=0.10mm (Ra ≤ 0.8)

Stainless steel SUS304

Machining Methods: Finish turning of continuous external & end face Insert: WNMG080408-BF Cutting Conditions: Vc=259m/min, f=0.10mm/r, ap=0.10mm (Ra ≤ 0.8)

Flange

Machining Methods: Dry-type rough turning of continuous external and interrupted end face Insert: WNMG080408 Cutting Conditions: Vc=563m/min, f=0.25mm/r, ap=1mm

Advantages & Quality Control

Factory Strength

Certifications & Exhibitions

Shipping & Packaging

Shipping

Small orders: Sent by express courier (DHL/UPS/TNT/EMS).
Large orders: Air or sea freight via your nominated forwarder or our long-term partner agents.

Packaging

10 pcs / plastic box
50 pcs / bubble bag
100 pcs / carton

FAQ

Q1: Are you a manufacturer or trading company?

A1: Manufacturer. We run our own plant and export globally.

Q2: What CNC tools do you supply?

A2: Standard & custom: turning/milling inserts, U-drills, aluminum tools, PCD/CBN.

Q3: Can you customize or add my logo?

A3: Yes—OEM/ODM. We can build to spec and laser-mark branding/specs.

Q4: Do you offer samples?

A4: Standard samples free; buyer pays freight. Custom samples may incur a fee.

Q5: What’s the MOQ?

A5: No strict MOQ for standard items; small trials welcome. Better pricing for volume.

Q6: How do you ensure quality?

A6: ISO-based QC, 100% inspection. Report issues within 7 days—replace or refund.

Product Detail

LNMU0303ZER-MJ LNMU Insert Indexable Milling Insert Carbide APKT Blades MJ Grade CNC Mill Cutter Tool Indexable Milling Insert
