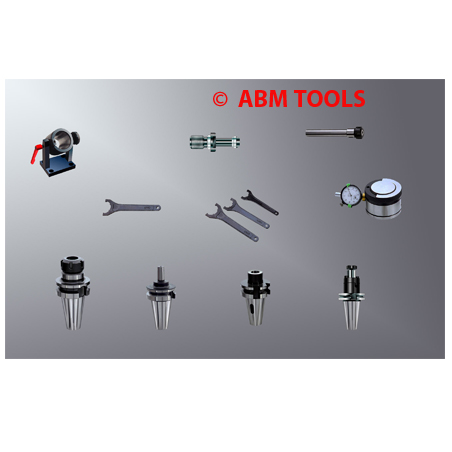

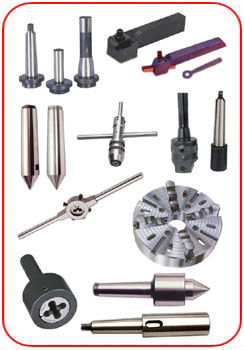

CNC tool holders and collets are essential components in CNC (Computer Numerical Control) machining. They serve as the interface between the machine spindle and the cutting tool, securely holding the tool in place during machining operations.

A CNC tool holder is a device designed to:

• Securely hold the cutting tool: Preventing it from moving, vibrating, or slipping during the machining process.
• Provide accurate positioning: Ensuring the cutting tool is precisely located relative to the workpiece.
• Transmit cutting forces: Effectively transferring the power from the spindle to the tool.
• Facilitate tool changes: Allowing for quick and efficient replacement of tools, especially in machines with automatic tool changers (ATCs).

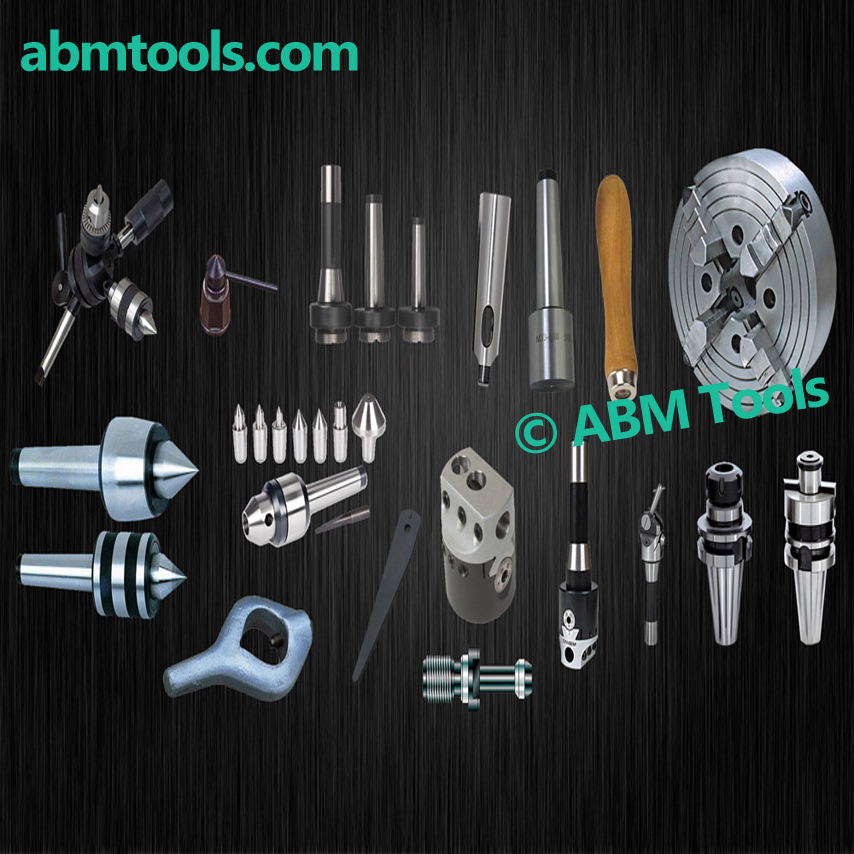

There are various types of CNC tool holders, each designed for specific applications, spindle types, and cutting tools. Some common types include:

• Collet Chucks: Utilize collets to clamp the cutting tool. They offer good concentricity and are versatile for various tool types (drills, end mills, taps, etc.).
• End Mill Holders (Side Lock Holders): Specifically designed for holding end mills using a setscrew on the side.
• Shell Mill Adapters (Face Mill Arbors): Used to mount face milling cutters.
• Drill Chuck Arbors: Adapt drill chucks to the CNC spindle for holding drills.
• Tapping Chucks: Designed to hold taps for thread cutting, often with features to compensate for synchronization errors.
• Hydraulic Chucks: Use hydraulic pressure to provide high clamping force and vibration damping, suitable for high-precision work.
• Shrink Fit Holders (Heat Shrink Chucks): Offer excellent concentricity and holding power by heating the holder to expand the bore, inserting the tool, and then allowing it to shrink and grip the tool tightly.
• Modular Tooling Systems (e.g., Capto, HSK): These are more complex systems that offer high rigidity, accuracy, and quick change capabilities, often used for high-speed machining.
• Boring Bar Holders: Designed to securely hold boring bars for internal machining.

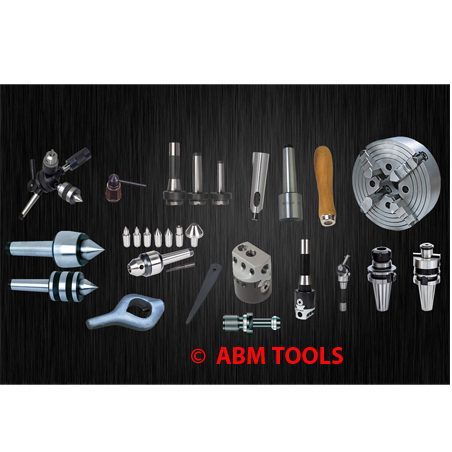

CNC tool holders are designed to match specific spindle interfaces. Common standards include:

• BT (JIS B6339): A widely used standard, symmetrical for better balance at high speeds.
• CAT (ASME B5.50): Also known as V-Flange tools, a robust and common standard.
• HSK (DIN 69893 / ISO 12164): Hollow Shank Taper, designed for high-speed machining with face contact for increased rigidity.
• NMTB/ISO 2080: An older standard still found on some machines.
• Straight Shank: Holders with a cylindrical shank that are clamped directly in certain types of spindles or other holders.
• R8: Commonly used on smaller milling machines, offering quick tool changes.

A CNC collet is a precision clamping sleeve that fits inside a collet chuck to securely hold a cutting tool or workpiece. Collets are designed to provide a concentric and even clamping force around the tool shank.

• High Concentricity: Ensures the cutting tool rotates accurately around the spindle axis, crucial for precision machining and tool life.
• Secure Grip: Provides a strong and reliable hold to prevent tool slippage during cutting.
• Versatility: Different collet types and sizes can accommodate a range of tool shank diameters.
• Ease of Use: Relatively simple to install and change tools.

There are various types of CNC collets, each with its own characteristics and applications:

• ER Collets (DIN 6499 / ISO 15488): The most popular and versatile type, available in a wide range of sizes and offering a good balance of accuracy and holding power. They have a collapse range, allowing them to hold tools with slightly different shank diameters.
• R8 Collets: Commonly used in milling machines, known for quick tool changes.
• 5C Collets: Primarily used for workholding in lathes but can also hold small tools in specialized holders. They offer excellent concentricity and holding power.
• DA (Double Angle) Collets: An older design still used in some applications, known for a secure grip.
• TG Collets: Similar to DA collets but often with more slots for increased holding power.
• SK Collets: High-precision collets often used for high-speed machining.
• OZ Collets: Another type of collet with a good gripping range.
• Specialty Collets: Designed for specific tools or applications, such as tap collets with axial compensation.
