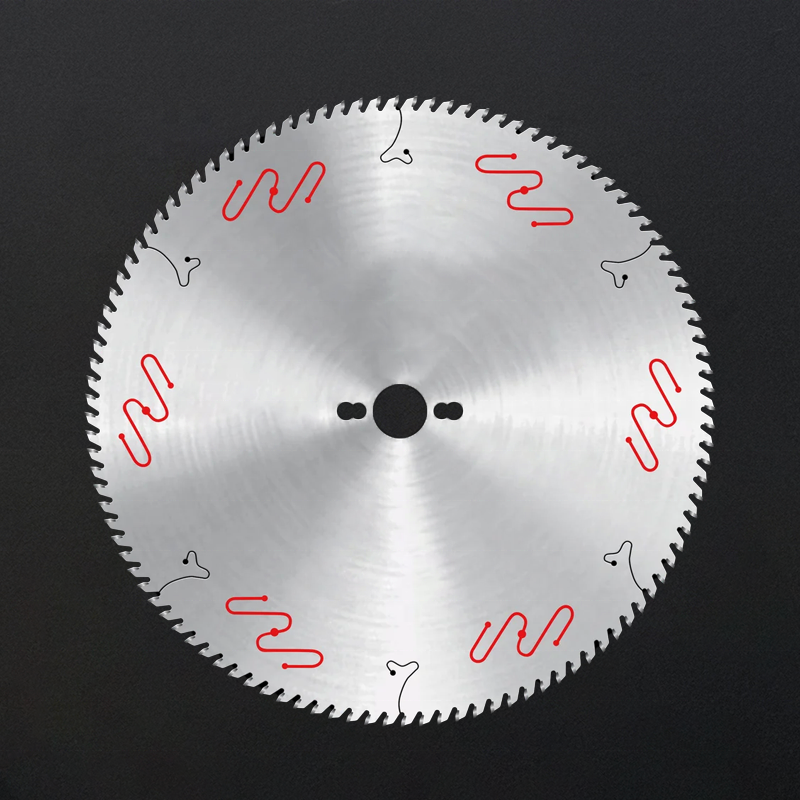

Freud Italy Quality Plywood Cutting Saw TCT Wood Circular Saw Blade 300*96T Cutter Blade For Sliding Panel Sizing Machine

Product Description

Item Freud Industrial TCT Saw Blade Factory Wholesale Fast Cutting TCT Circular Carbide Saw Blade for Wood Cutting
Teeth head Hi-Density Carbide
Plate body laser-cut premium quality steel plate
Widely use Solid wood, MDF, soft board, composite, shaving board

Product Description

Our 300mm x 96T Panel Sizing saw blade is exclusive blend of Hi-Density Carbide and it is specifically designed for each cutting application to maximize cutting long life, high-precision avoidance grinding and automated panel saws and beam saws, delivering unmatched precision and cost efficiency.

With sharp and high wear resistance Triple Chip Grind (TCG) tooth or Alternate Top Bevel (ATB).

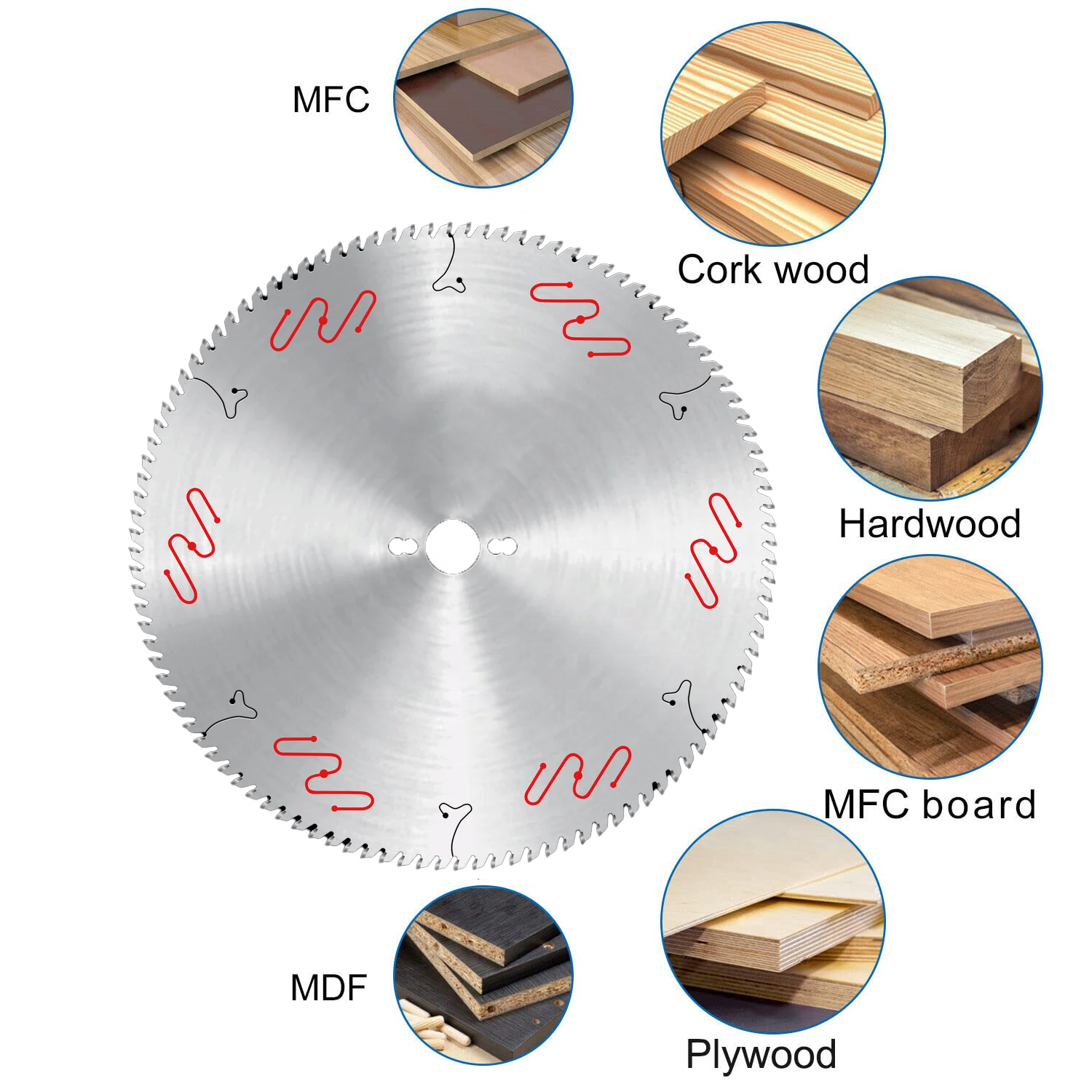

Widely used for softwood, hardwood, plywood, chipboard, multi-board, panels, MDF, plated & counted-plated panels, laminated & Bi-laminate plastic, and FRP. Providing a high degree of finish edge. The blades also can rip cut along the grain.

  • Anti-Vibration design eliminates movement and reduces vibration for flawless cuts.
  • Laser-cut heat expansion slots prevent heat build-up on the blade during operation.
  • The tough coating keeps the blade running cooler and cleaner.

Application: Electronic panel saw, CNC panel saw, sliding table saw, precision panel saw and beam saw for furniture factory panel cutting.

300mm 96t Freud Type Saw Disc Melamine Mdf Board Tct Cutting Disc Low Noise Titanium Coated Tungsten Circular Saw Blade

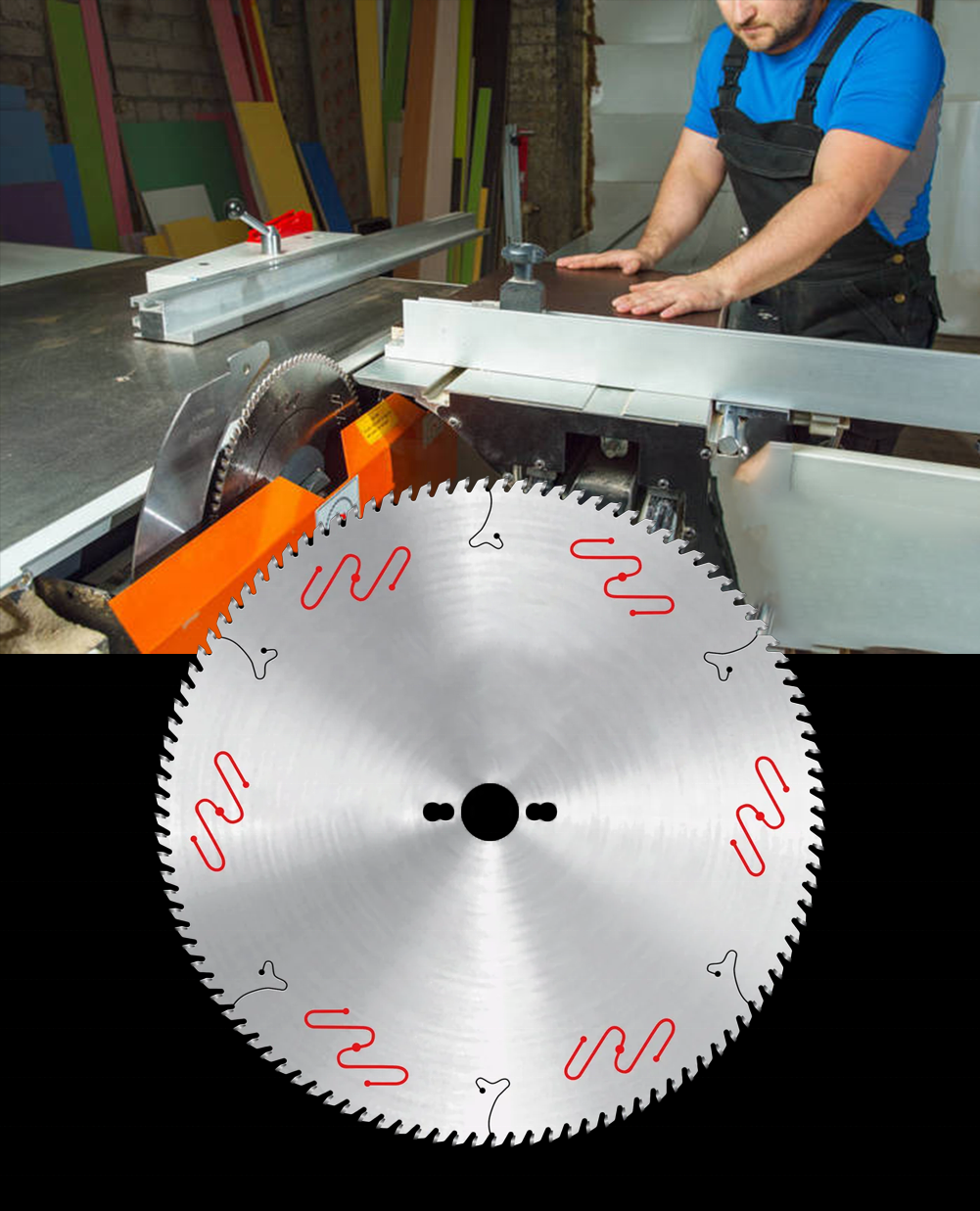

TCT Circular Saw Blade Overview

Specification

NO DIA (MM) INNER DIA (MM) THICKNESS (MM) TEETH NUMBER TEETH STYLE
1 255 50 3.2 120 ATB
2 300 30 3.2 72 TP
3 300 30 3.2 96 TP
4 380 60/75 4.4 84 TP
5 400 60/75 4.4 84 TP
6 450 60 4.8 84 TP

Details Images

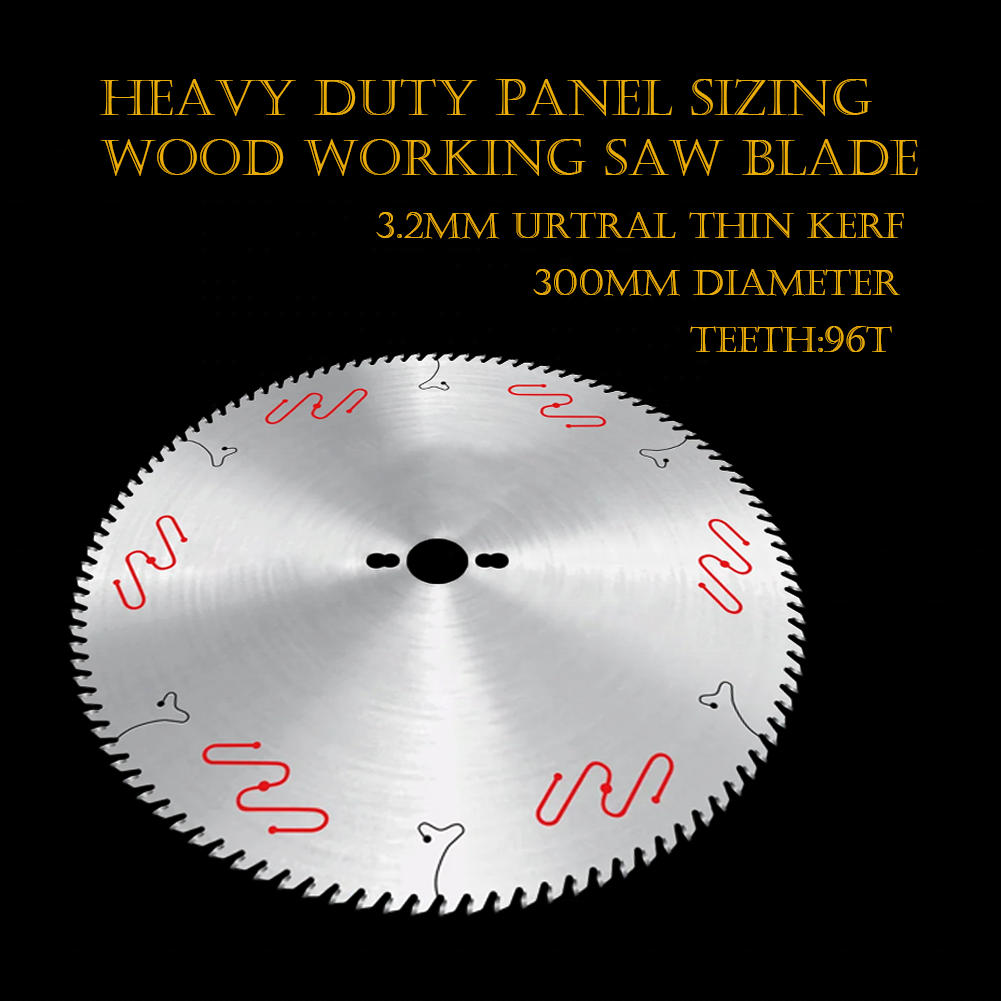

Hardened steel blade details
HEAVY DUTY FULLY HARDENED STEEL BLADE WOOD WORKING SAW BLADE

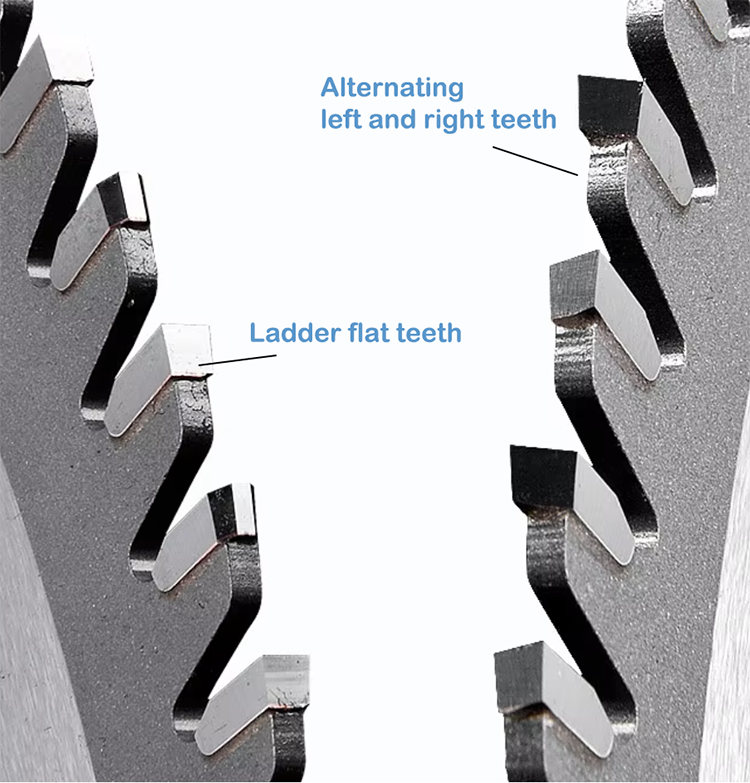

Carbide teeth details
Precision plate design ensuring straight and smooth cuts.

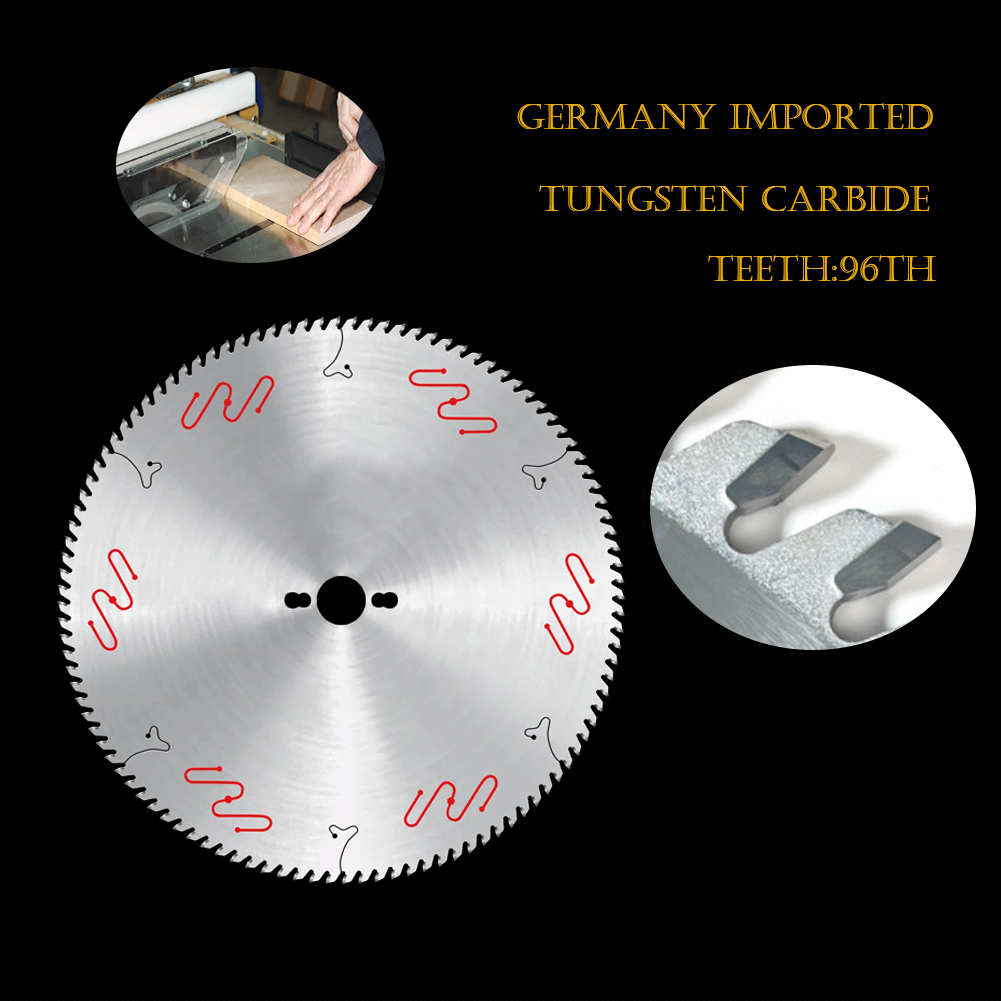

Premium tungsten carbide teeth details
PREMIUM TUNGSTEN SHARP CARBIDE TEETH. THE CARBIDE TIPS ARE WELDED ONE BY ONE TO THE TIPS OF EACH BLADE IN A FULLY AUTOMATED PROCESS.

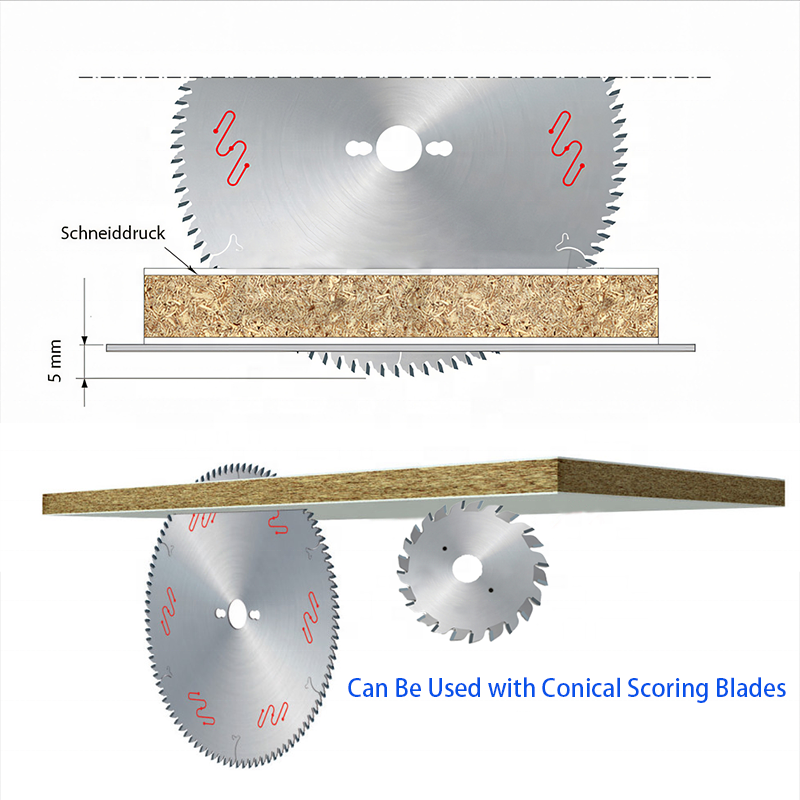

Silence line details
SILENCE LINE: CAN BE REDUCE NOISE AND VIBRATION.
SAW BODY: HIGH GRADE ALLOY STEEL PLATE, BODY HARDENED & TEMPERED FOR TRUNESS.
Laser cut line details
Advanced laser-cut technologies applied for extreme precision.

Technical Features

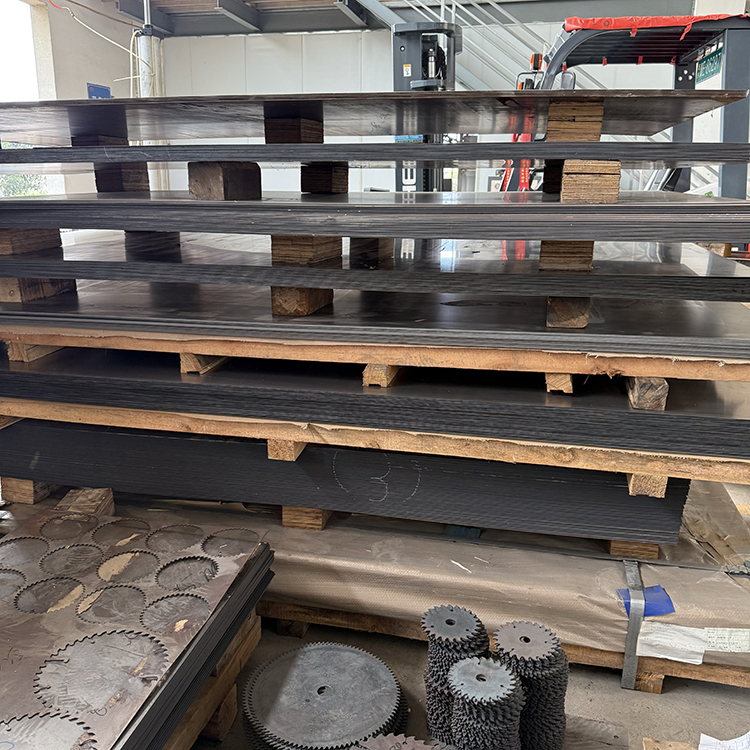

Steel materials workshop
Steel materials
Hi-Tolerance Precision Plate Grinding & Tensioning features a laser cut blade body from Germany 75CrV1, 80CrV2 steel plate (the world’s highest quality steel) that remains flat and true over the lifetime of the blade.

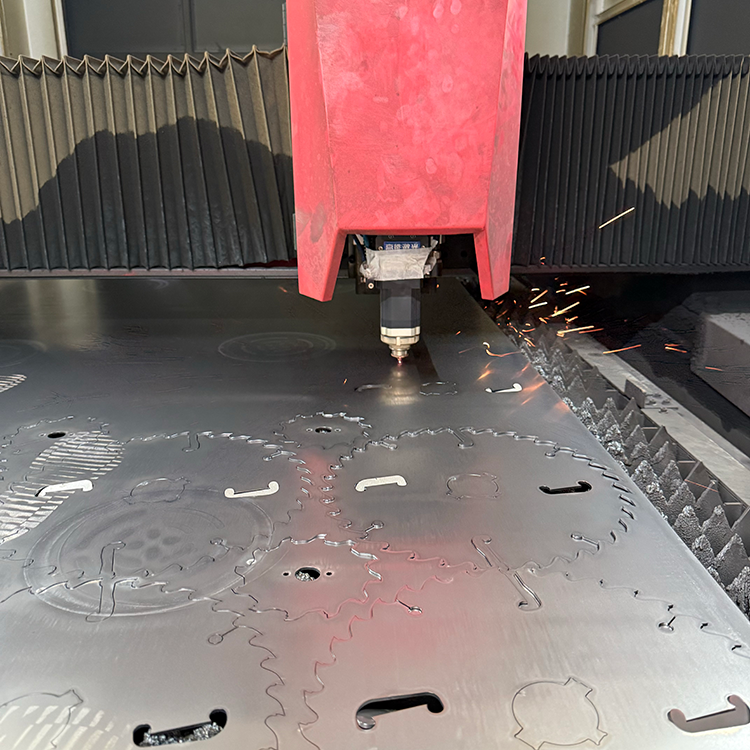

Laser cut process
Laser cut
With Advanced and high technology laser cut machine from Europe.
Professional and personalized laser cut design.

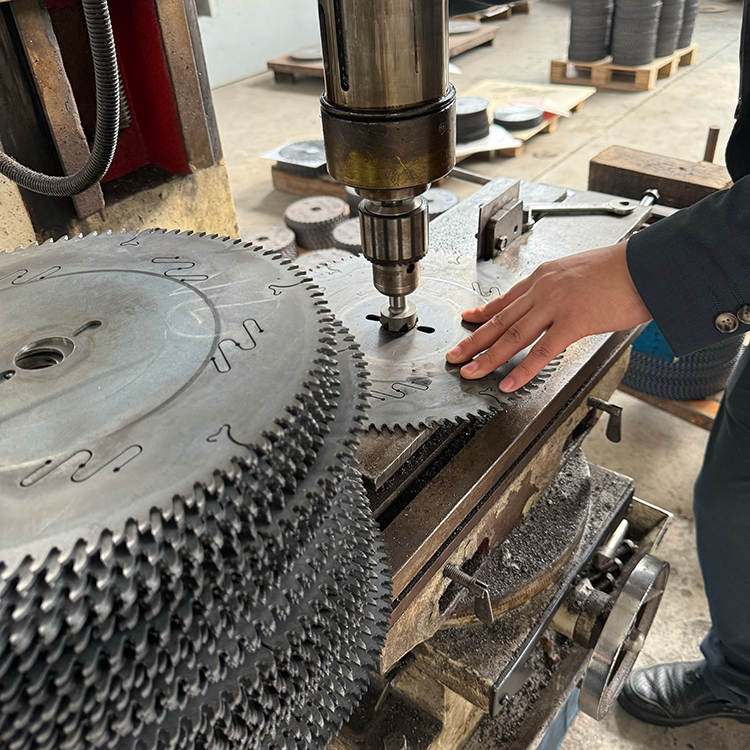

Remain holes workshop
Remain holes workshop
Highly strict for the hole size. It can be customized by customer's request.

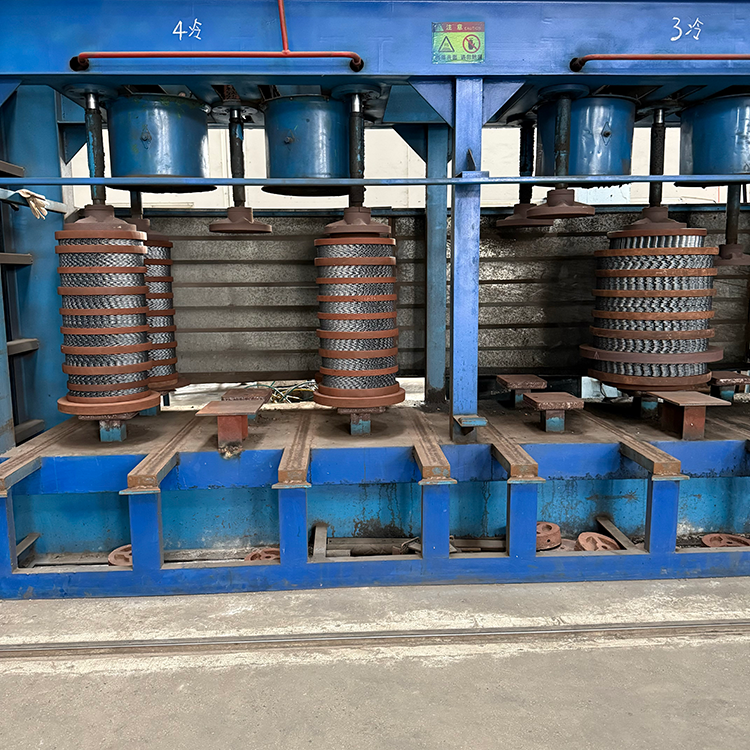

Tempering workshop
Tempering
Body Tempering workshop. Hot heat resistance body plate. High flatness makes the blade in high and fast smooth cutting.
Advanced production line

Packing & Delivery

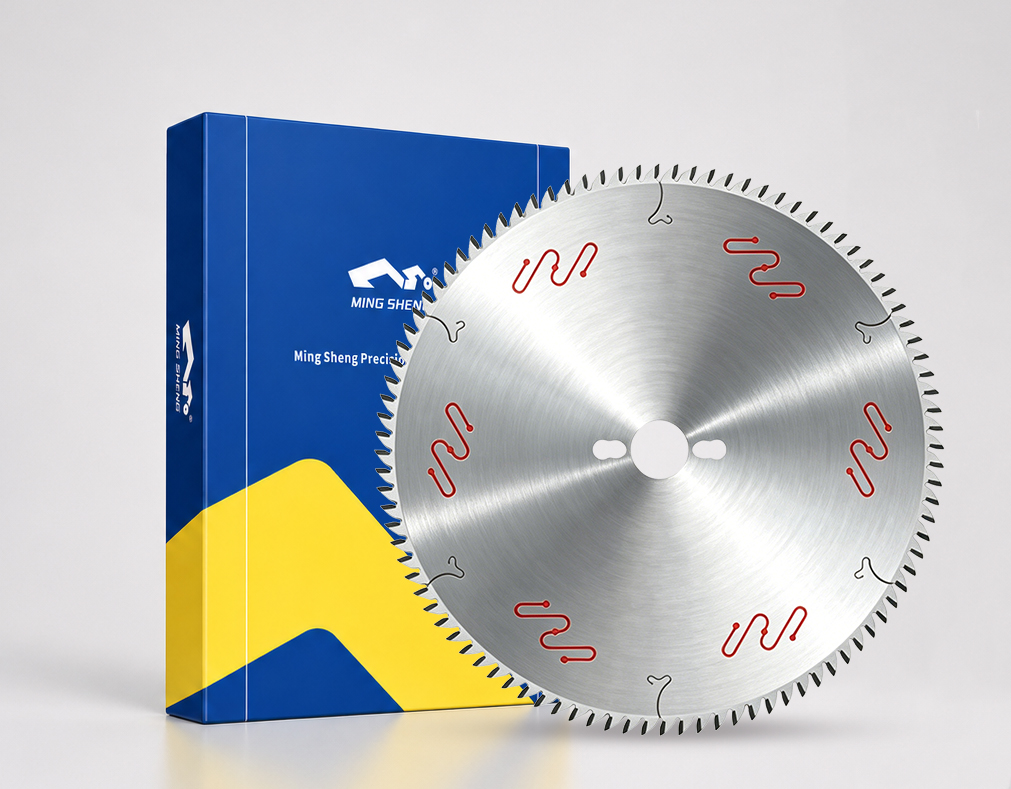

Packaging Box details

Our normal package is one piece per carton color box. We can do color box, white box and other packages as customer's request.

Manufacturing Capabilities

We are specialized in panel sizing saw blades, TCT circle saw blades, wood cutting saw blades, Aluminum saw blades, multi ripping saw blades, miter saw blades, hardware tools etc. We have owned multiple automated production lines from Germany. The factory possesses numerous advanced and imported manufacturing & detection equipments, with excellent skilled technicians and staff. The annual production capacity is more than 20 million pieces. Enjoyed high reputation both in domestic and overseas markets. We have won a lot of customers from West Europe, North America and Middle East etc. Let us be your partner.

Advanced automated factory floor
High precision manufacturing machine

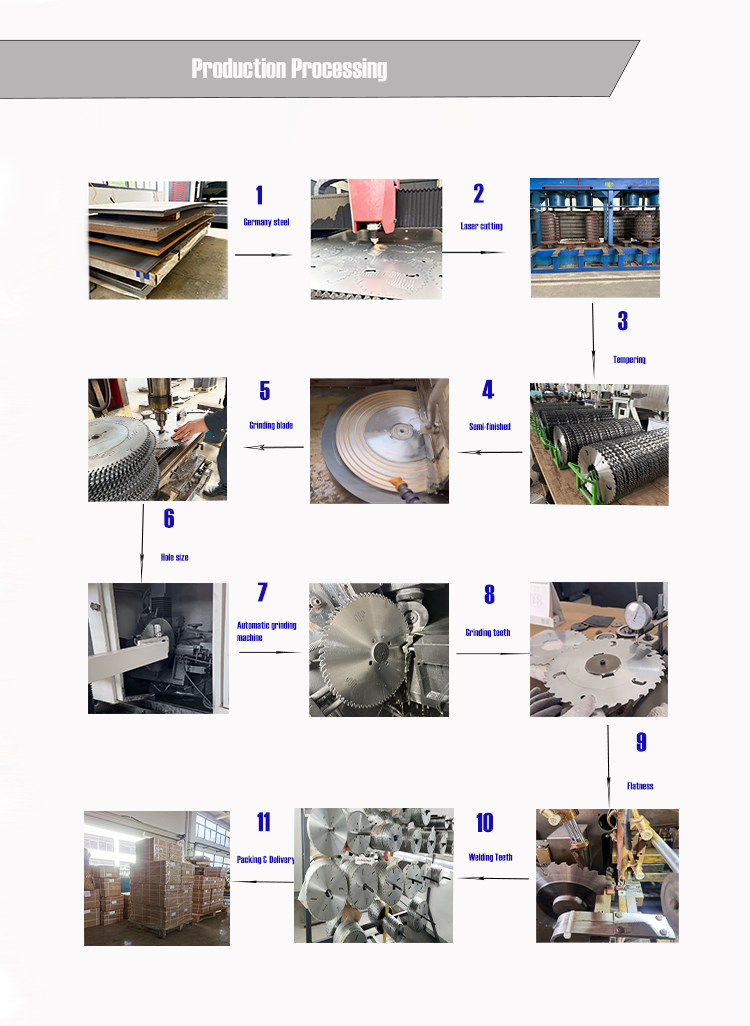

Technicians inspecting blades

Transportation

Transportation logistics modes

FAQ

Q1. How is your quality grade?
A1. Our products are top grade on the market. We use Germany imported Alloy steel and carbide to ensure a stable, flat blade for long cutting life.
Q2. Do you have different quality for different kinds of material?
A2. Yes, according to the hardness of material and material's features, we have different typologies respectively.
Q3. Can you offer technical support?
A3. Yes, we have an experienced and professional team offering our customers additional benefits with specific advice from our product management staff, engineers, and technicians.
Q4. What is your MOQ?
A4. Our MOQ is usually only 1 PCS.
Q5. Which Express company do you send through? How many days will it take to receive?
A5. We can send via FEDEX and DHL. It takes 4-7 days to arrive at your location.
Q6. Can you do OEM and ODM service?
A6. Yes, we can provide OEM and ODM service. You can send your detailed specifications to us for further discussion.
